LPM-10R-DIM 10.4” Panel Mount Touch Monitor.. Product #: LPM-10R-DIM Pre-Order

LPM-10R-DIM

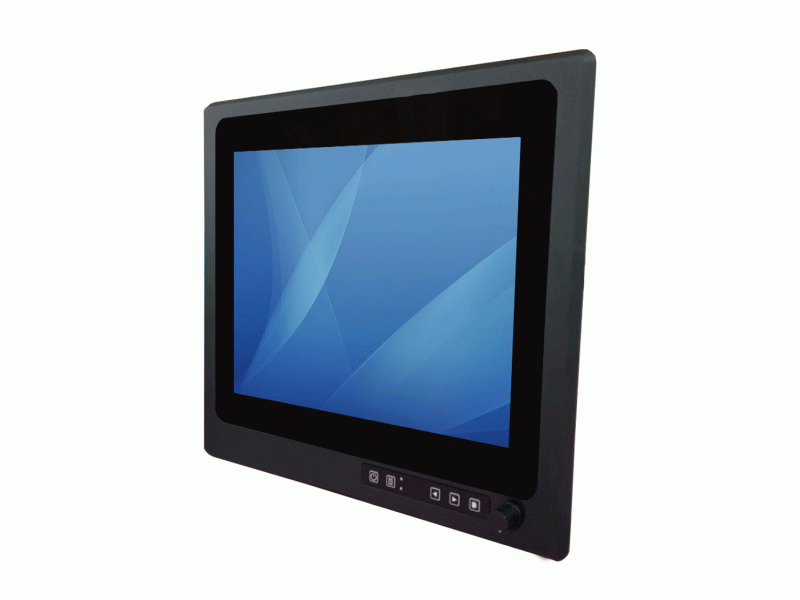

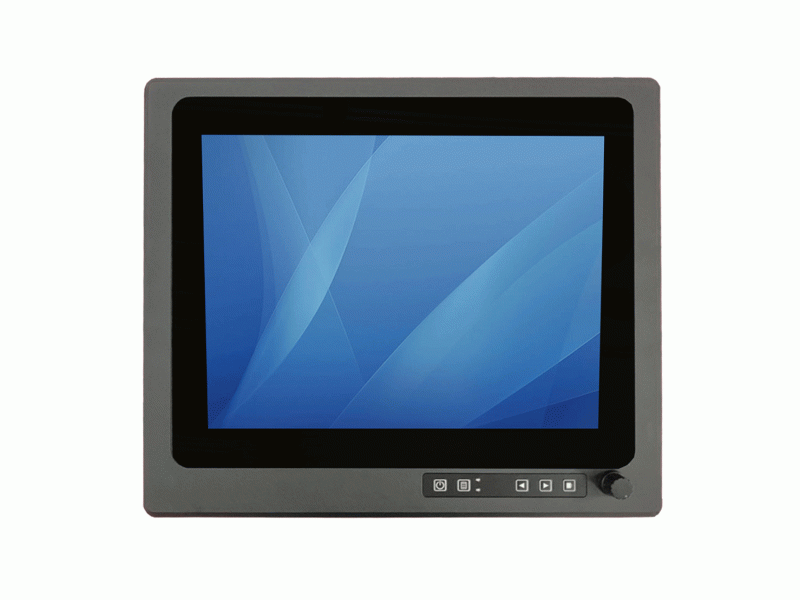

10.4” Panel Mount Touch Monitor
Product Code: LPM-10R-DIM
Availability: Pre-Order

    Call for Price： .

    Add to Compare

    Ask Question

      Document file size Download Link
      LPM-10R-DIM 352.31KB Download
      Panel Specification
      Size/ Type 10.4” LCD
      Resolution 1024 x 768 @ 60Hz, 75Hz
      Brightness 400 nits (cd/m2)
      Contract Ratio 1200 : 1 (typ.)
      Max. Colors 16.2M (8 bits / color)
      Viewing Angle -88 ~ 88 (H); -88 ~ 88(V)
      Touch Screen 5-wire resistive touch or P-cap touch screen (USB)
      Active Area 211.2 (H) x 158.4 (V)
      Pixel Pitch (mm) 0.264(H) x 0.264(V)
      System
      Mounting Type Panel Mount
      IP Grade Front IP65
      Power Input 9~36V Power Input
      Dimming 0~100% Dimming by knob

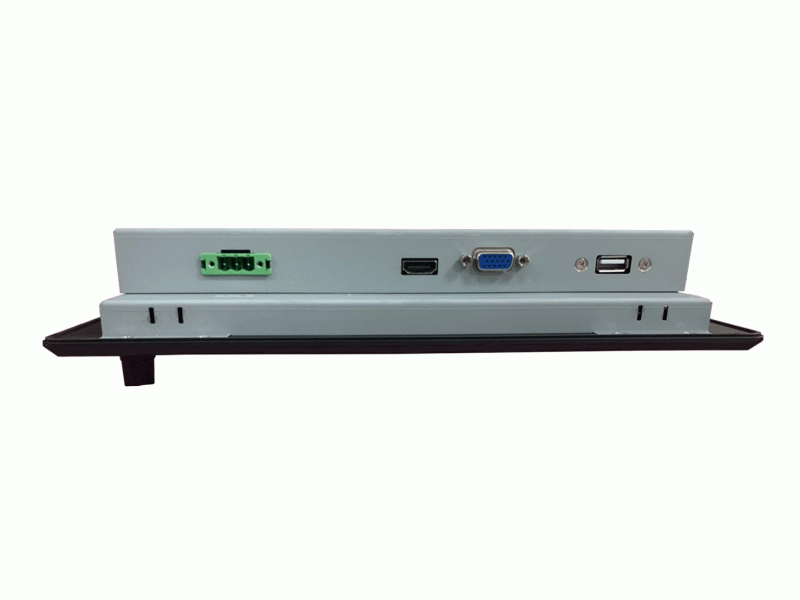

      Input / Output
      VGA 1 x VGA D-Sub 15 pin
      DVI 1 x DVI-D
      HDMI 1 x HDMI (for optional)
      Video S-Video, Composite (optional)
      USB 1 x USB for touch
      Power Input 1 x DC input (terminal block)
      Power Specification
      Power Adapter N/A
      Power Consumption 20W typical, normal operation
      Power Input 9~36V Power Input
      Power Cord N/A
      Environment Specification
      Operating Temperature 0 deg. C to 55 deg. C
      Storage Temperature -20 deg. C to 70 deg. C
      OSD
      OSD Input 5-key OSD buttons
      OSD Function Contrast, Color, Position, Auto-adjustment, Factory Settings
