LPM-10R-CP

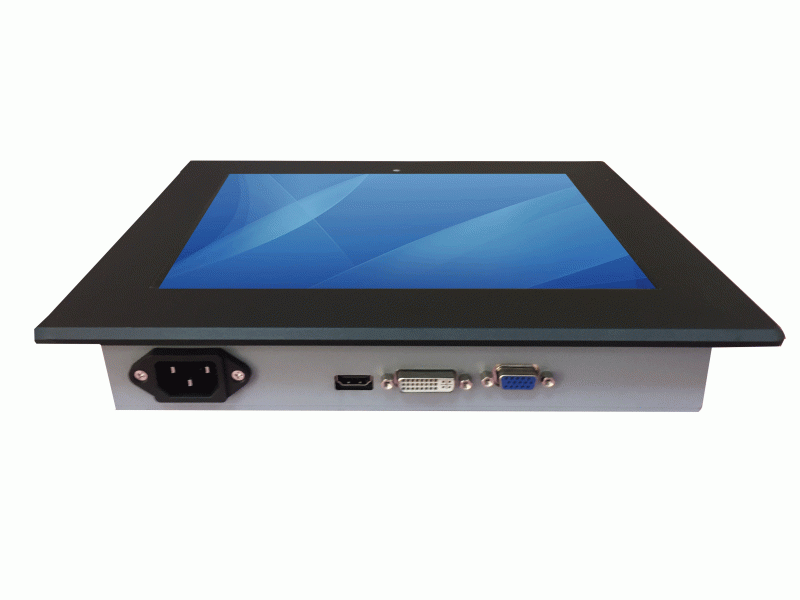

10.4” Panel Mount Touch Monitor
Product Code:
LPM-10R-CP
Availability:
Pre-Order
•10.4” (4:3) 1024x768
•P-cap multi-touch or flat 5-wire resistive touch
•Panel Mount / VESA Mount
•Front IP65
•10.4” (4:3) 1024x768
•P-cap multi-touch or flat 5-wire resistive touch
•Panel Mount / VESA Mount
•Front IP65
| Document | file size | Download Link |
|---|---|---|
 LPM-10R-CP |
561.22KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 10.4” LCD |
| Resolution | 1024 x 768 @ 60Hz, 75Hz |
| Brightness | 500 nits (cd/m2) |
| Contract Ratio | 1200 : 1 (typ.) |
| Max. Colors | 16.2M (8 bits / color) |
| Viewing Angle | -88 ~ 88 (H); -88 ~ 88(V) |
| Touch Screen | 5-wire resistive touch or P-cap touch screen (USB) |
| Glass | AR glass protection (optional) |
| Active Area | 211.2 (H) x 158.4 (V) |
| Pixel Pitch (mm) | 0.264(H) x 0.264(V) |
| Input / Output | |
| VGA | 1 x VGA D-Sub 15 pin |
| DVI | 1 x DVI-D |
| HDMI | 1 x HDMI (for optional) |
| Video | S-Video, Composite (optional) |
| USB | 1 x USB for touch |
| Power Input | 1 x 12V DC input |
| Power Specification | |
| Power Adapter | 12V output adapter |
| Power Consumption | 18W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Provided by region |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 55 deg. C |
| Storage Temperature | -20 deg. C to 70 deg. C |
| OSD | |
| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position, Auto-adjustment, Factory Settings |
