RCX-1000-ELK
Compact Embedded Systems with Intel Elkhart Lake J6412 Platform
Product Code:
RCX-1000-ELK
Availability:
Pre-Order
- Intel® Elkhart Lake J6412, up to 2.6GHz

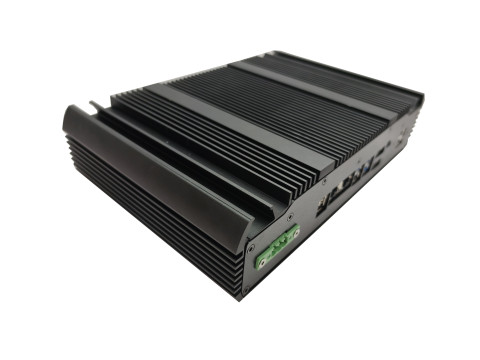

- Fanless w/Aluminum housing
- RAM DDR4, up to 16GB
- Dual 2.5GbE Networking
- Intel® Elkhart Lake J6412, up to 2.6GHz
- Fanless w/Aluminum housing
- RAM DDR4, up to 16GB
- Dual 2.5GbE Networking
| Document | file size | Download Link |
|---|---|---|
 RCX-1000-ELK |
369.89KB | Download |
| System | |
|---|---|
| System Chipsets | Intel SoC integrated |
| System Memory | 1 x DDR4 SO-DIMM 320, up to 32GB |
| Storage | 1 x M-Key 2280 (PCIe 3.0 x2) Support NVMe |
| Expansion Slot | 1 x E-key 2230, 1 x B-key 3042/3052 |
| BIOS | UEFI |
| OS Support | Win10, Win11, Linux supported |
| Watchdog | 256 levels |
| Input / Output | |

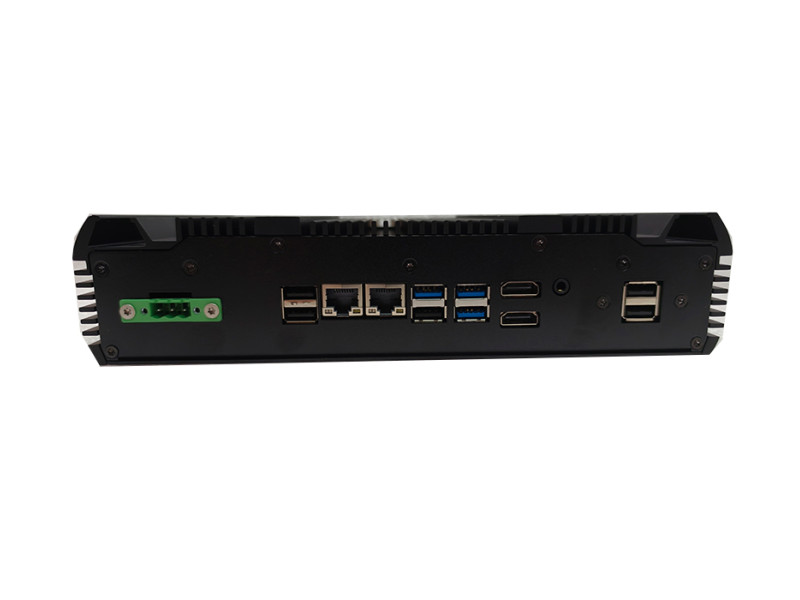

| Ethernet | 2 x 2.5GbE RJ45 |
| HDMI | 2 x HDMI 2.0 output |
| Power | 1 x 3-pin terminal block |
| Audio | 1 x Audio |
| USB | 3 x USB 3.1 , 5 x USB2.0 |

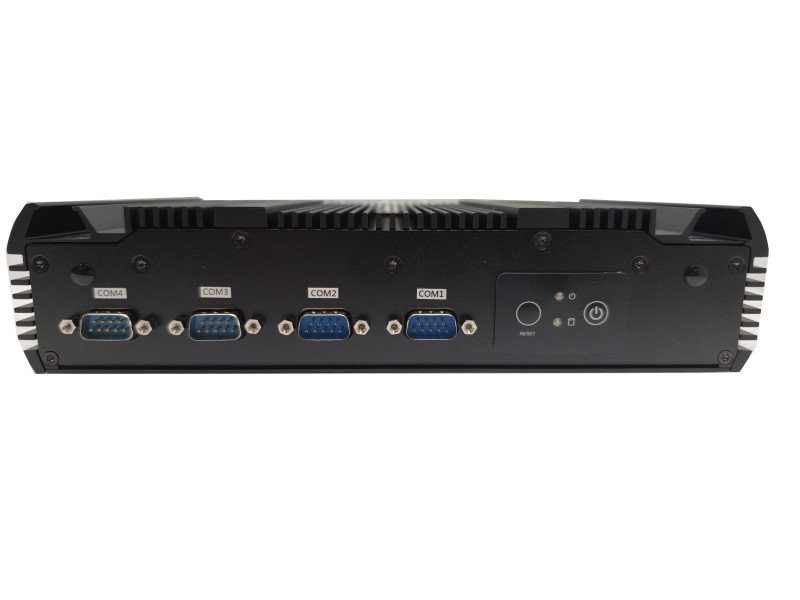

| COM | 1 x RS232 |
| GPIO | 8-bit GPIO (optional) |
| Power Specification | |
| Power Consumption | 40 watt (typical) |
| Power Input | 12-24V DC Input |
| Environment Specification | |
| Operating Temperature | -10 deg. C to 60 deg. C |
| Operating Humidity | 5% to 95% (Non Condensing) |
| Storage Temperature | -30 deg. C to 80 deg. C |
| Vibration | MIL-STD-810G Compliance |
| Shock | MIL-STD-810G Compliance |
| Dimensions and Weight | |
| Dimensions | 256.0 x 170.0 x 58.0 mm ( W x D x H ) |
| Weight | 2.5 Kg |
| Accessory | |
| Power adapter | 1 x AC/DC Power adapter(optional) |
| Power cord | 1 x Power Cord |
1.Intel® Elkhart Lake
2. Fanless w/Aluminum
