RDC-19R

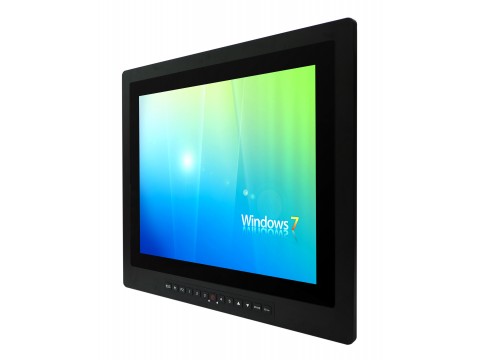

19" Full-IP67 touch monitor, truely flat front surface design
Product Code:
RDC-19R
Availability:
Pre-Order
- True flat surface in front
- Rugged Design, full-IP67
- Programmable buttons in front
- Projected capacitive touch or 5-wire resistive touch screen
- Anti-moisture on the panel
Call for Price： .
- True flat surface in front
- Rugged Design, full-IP67
- Programmable buttons in front
- Projected capacitive touch or 5-wire resistive touch screen
- Anti-moisture on the panel
RDC-19R| Panel Specification | |
|---|---|
| Size/ Type | |
| Size/ Type | 19-inch LCD |
| Resolution | 1280 x 1024 |
| Brightness | 1,000 nits (sunlight readable) |
| Contract Ratio | 1,000:1 |
| Max. Colors | 16.7 (8 bit/colors) |
| Viewing Angle | -85~ 85 (H); -80~ 80 (V) |
| Touch Screen | Projected capacitive or 5-wire resistive touch |
| Dimming | 0~100% Brightness Dimming |
| Input / Output | |
| VGA | 1 x VGA (IP67 connector) |
| DVI | 1 x DVI-D (IP67 connector)(Optional) |
| Power | 1 x Power Input (IP67 connector) |
| Power Specification | |
| Power Consumption | 65W (typ.) |
| Power Input | 100~220V AC (or DC Input for optional) |
| Environment Specification | |
| Operating Temperature | -20~ 60degC |
| Operating Humidity | 5~ 95% (Non-condensing) |
| IP Level | Full IP67 with whole enclosure |
| Storage Temperature | -30~70degC |
