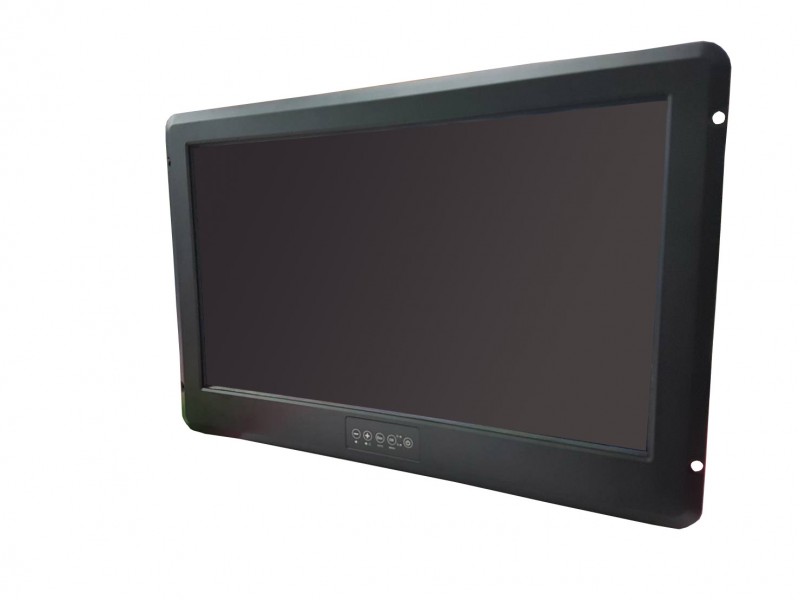

RDC-19W-SDI
18.5" 1080p 3G(HD)-SDI loop monitor
Product Code:
RDC-19W-SDI
Availability:
Pre-Order
- HD-SDI Input / Output
- 18.5" 1920x1080, 400nits Display
- AR tempered glass
- VGA / DVI
- 9~36V DC Power Input
Call for Price： .
- HD-SDI Input / Output
- 18.5" 1920x1080, 400nits Display
- AR tempered glass
- VGA / DVI
- 9~36V DC Power Input
| Document | file size | Download Link |
|---|---|---|
 RDC-19W-SDI |
580.79KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 18.5 Inch |
| Resolution | 1920x1080 |
| Brightness | 400nits (1,000nits high brightness for optional) |
| Contract Ratio | 1,000 : 1 |
| Max. Colors | 16.7M colors (6 bits+FRC) |
| Viewing Angle | -89 ~ 89 (H); -89 ~ 89 (V) |
| Glass | AR tempered glass |
| Active Area | 409.8 (H) x 230.4 (V) |
| System | |
| Mounting Type | VESA / Panel Mount |
| Housing Material | Aluminum alloy |
| Input / Output | |
| VGA | 1 x VGA |
| DVI | 1 x DVI (optional) |
| HD-SDI | 1 x 3G(HD)-SDI Loop |
| Power Specification | |
| Power Adapter | N/A |
| Power Input | 9~36V Isolated DC |
| Environment Specification | |
| Operating Temperature | -10 ~ 60 deg.C |
| Operating Humidity | 5~95% (non-condensing) |
| IP Level | Front IP65 |
| Storage Temperature | -30~70 deg.C |
| Dimensions and Weight | |
| Dimensions | 483 x 315 x 76.4mm (WxLxD) |
| Weight | 5.5 KG |
HD-SDI Monitor
18.5" 1920x1080, 400nits Display
VGA / DVI/ 3G(HD)-SDI ln / 3G(HD)-SDI out
9~36V Isolated DC Input
AR tempered glass in front
1. 1,000nits high brightness
2. AV (PAL/NTSC) Input
3. P-cap multi-touch screen
4. Isolated BNC connector
