LFS-10R

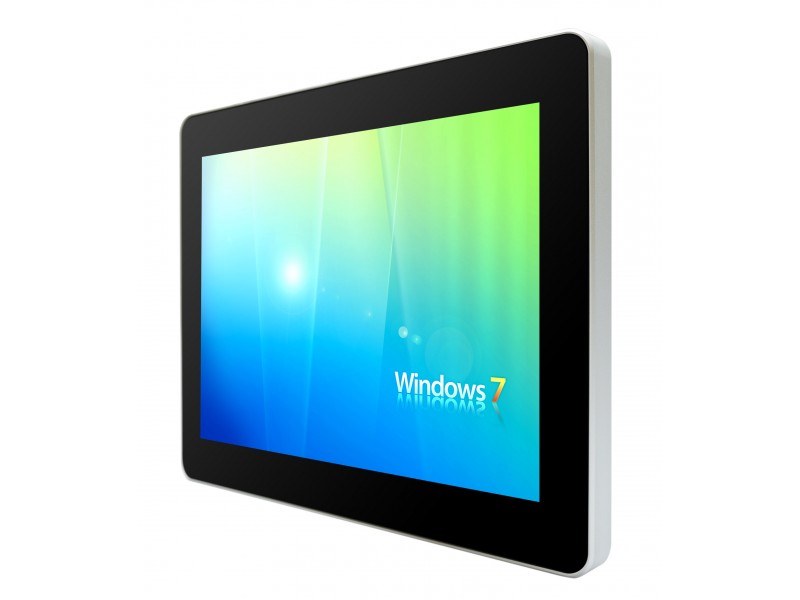

10.4” LCD (LED backlight) Projective Capacitive Touch Monitor
Product Code:
LFS-10R
Availability:
2 - 3 Days
Call for Price： .
| Document | file size | Download Link |
|---|---|---|
 LFS-10R |
386.33KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 10.4” TFT LCD |
| Resolution | 1024 x 768 |
| Brightness | 400 nits (1,000nits Sunlight Readable for optional) |
| Contract Ratio | 500:1 (typ.) |
| Max. Colors | 16.2M |
| Viewing Angle | -88~88 (H) ; -88~88 (V) |
| Touch Screen | Default P-cap touch screen (USB) (flat 5-wire resistive touch for optional) |

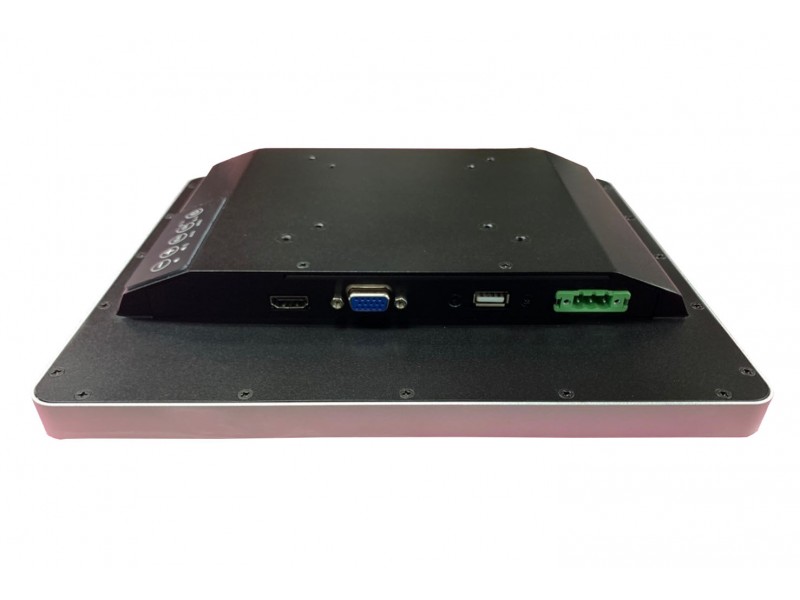

| Input / Output | |
| VGA | 1 x VGA D-Sub 15 pin |
| DVI | 1 x DVI-I input (optional) |
| HDMI | 1 x HDMI Input |
| Video | S-Video, Composite (optional) |
| USB | 1 x USB for touch screen |
| Power Input | 1 x 12V DC input (9~36V DC for optional) |
| Power Specification | |
| Power Adapter | 1 x AC to DC Power adapter (For 12V DC input) |
| Power Consumption | 15 W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Provided by region |
| Environment Specification | |
| Operating Temperature | -5 deg. C to 50 deg. C |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Vibration | 5Hz~500Hz / 1Grms/3 Axis |
| Shock | MIL-STD-810G Method 516.6 Procedure I, Up to 50G/11ms |
| Water/Dust proof | 5-side IP65 |
| OSD | |

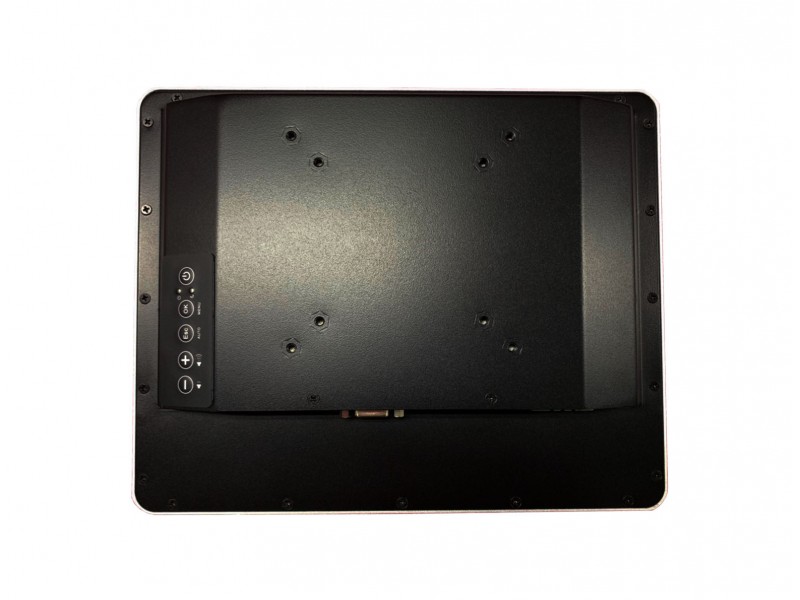

| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position, Auto-adjustment, Factory Settings |
