LCH-15W-SDI-ML

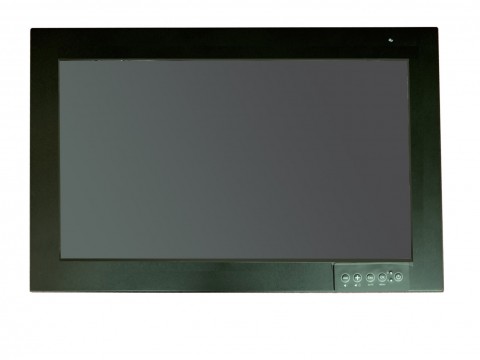

15.6" 1080p HD-SDI Input monitor
Product Code:
LCH-15W-SDI-ML
Availability:
Pre-Order
- HD-SDI Monitor
- 15.6" 1920x1080, 500nits Display
- Anti-EMI protective glass in front
- D38999 MIL Connectors
- VGA / DVI /HD-SDI Input
- 9~36v DC Power Input
Call for Price： .
- HD-SDI Monitor
- 15.6" 1920x1080, 500nits Display
- Anti-EMI protective glass in front
- D38999 MIL Connectors
- VGA / DVI /HD-SDI Input
- 9~36v DC Power Input
| Document | file size | Download Link |
|---|---|---|
 LCH-15W-SDI-ML_Datasheet |
661.47KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 15.6 Inch |
| Resolution | 1920x1080 |
| Brightness | 500nits |
| Contract Ratio | 1000 : 1 |
| Max. Colors | 16.7M colors (6 bits) |
| Viewing Angle | -89 ~ 89 (H); -89 ~ 89 (V) |
| Touch Screen | No touch screen |
| Active Area | 344 (H) x 194 (V) |
| System | |
| Mounting Type | 75*75,100*100VESA Mount |
| Housing Material | Aluminum alloy |
| Input / Output | |
| USB Ports | NA |
| VGA | 1 x VGA |
| DVI | 1 x DVI (optional) |
| HD-SDI | 1 x HD-SDI (3G-SDI for optional) |
| Power Specification | |
| Power Adapter | No adapter |
| Power Input | 1 xDC 9~36V Input |
| Environment Specification | |
| Operating Temperature | -20 ~ 60 deg.C |
| Operating Humidity | 5~95% (non-condensing) |
| IP Level | Front IP65 |
| Storage Temperature | -30~80 deg.C |
HD-SDI Monitor
15.6" 1920x1080, 500nits Display
VGA / DVI / HD-SDI Input
9~36v DC Power Input
D38999 MIL Connectors
