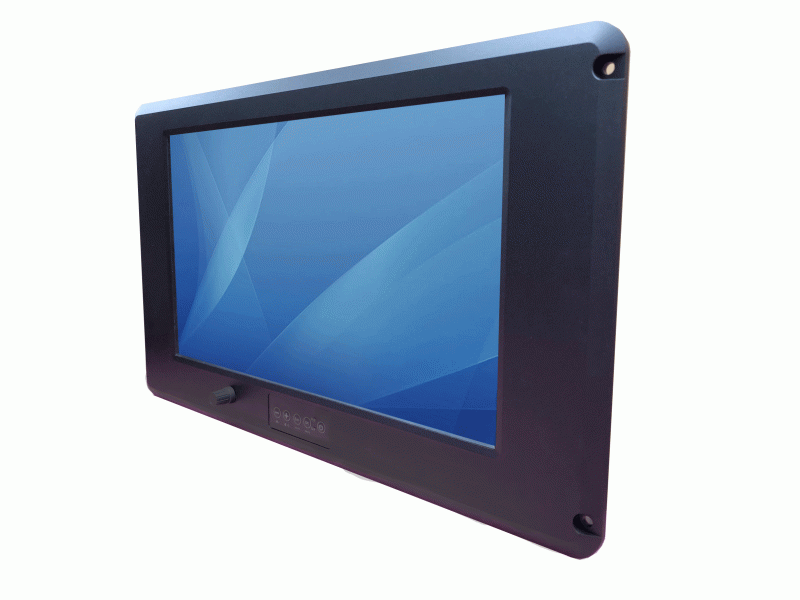

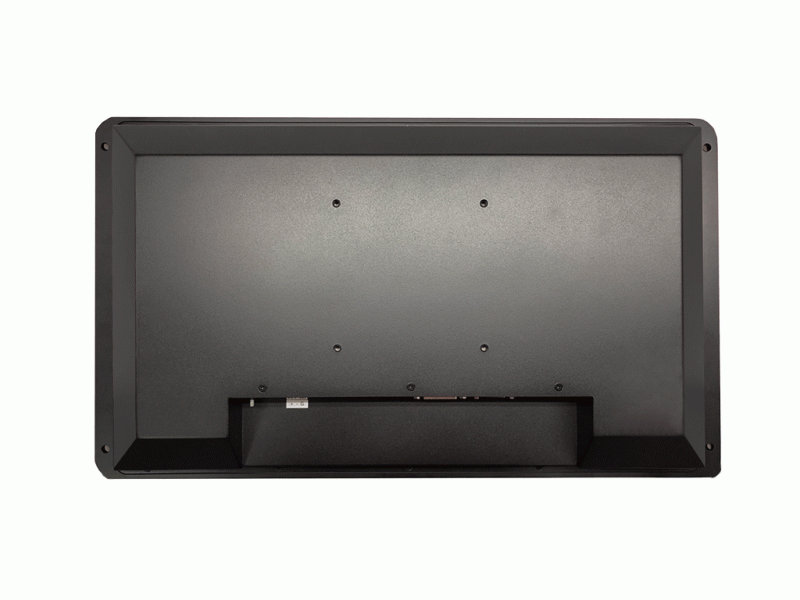

RDC-15W

15.6" Rugged Display

Product Code: RDC-15W

Availability: Pre-Order

•Rugged Display with MIL-STD-810G in vibration & shock

•-10~60C Wide Operating Temperature

• Full IP65 Except I/O

• Full heavy Alu. housing

• 5-wire resistive touch screen or AR protective glass either one

• Front handles (optional)

•Rugged Display with MIL-STD-810G in vibration & shock

•-10~60C Wide Operating Temperature

• Full IP65 Except I/O

• Full heavy Alu. housing

• 5-wire resistive touch screen or AR protective glass either one

• Front handles (optional)

Document	file size	Download Link
RDC-15W	1.32MB	Download

Panel Specification
Size/ Type	15.6” (16:9) wide LED Backlight
Resolution	1920 x 1080
Brightness	400 nits
Contract Ratio	800:1 (typ.)
Max. Colors	16.7M (8bits/colors)
Viewing Angle	-85~85 (H) ; -85~85 (V)
Glass	Either AR tempered glass or 5-wire resistive touch glass
Active Area	344.232 (H) x 193.536 (V)
Pixel Pitch (mm)	0.17925 (H) x 0.17925mm (V)
Input / Output
USB Ports	USB port for touch screen (optional)
VGA	1 x VGA (15 Pin D-Sub)
DVI	1 x DVI Input
HDMI	1 x HDMI Input(Optional)
Video	N/A
Power Input	1 x 9~36V DC Power Input
Power Specification
Power Adapter	N/A
Power Consumption	40W (typ)
Power Input	9~36V wide range DC Input
Management	VESA DPMS compliant
Environment Specification
Operating Temperature	-10 deg. C to 60 deg. C
Operating Humidity	10 to 90% (Non Condensing)
IP Level	Front IP65, Rear IP54
Storage Temperature	-20 deg. C to 80 deg. C
Vibration	MIL-STD-810G Method 514.6C-3
Shock	MIL-STD-810G Method 516.6 20G, 11ms
Dimensions and Weight
Dimensions	480mm(W) x 282mm(H) x 110mm(D)
OSD
OSD Input	5- Key front Controlling Buttons
OSD Function	0~100% brightness dimming knob
