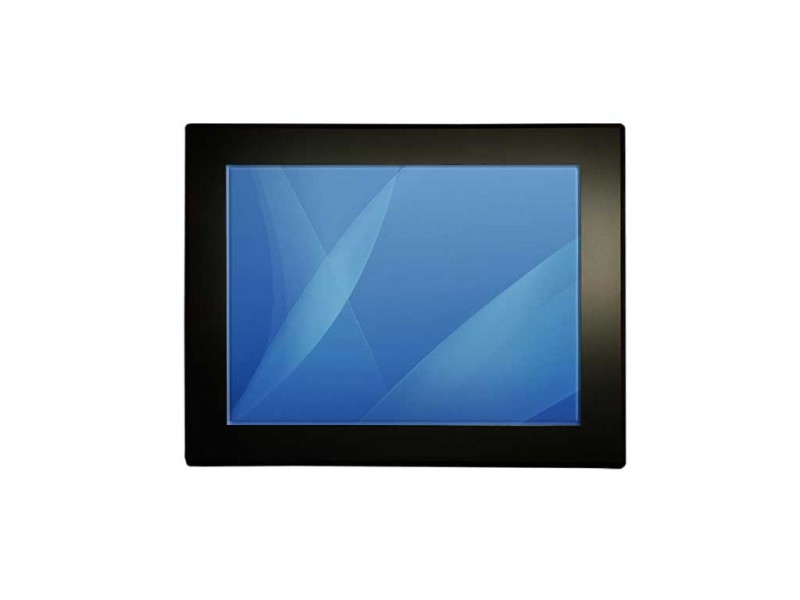

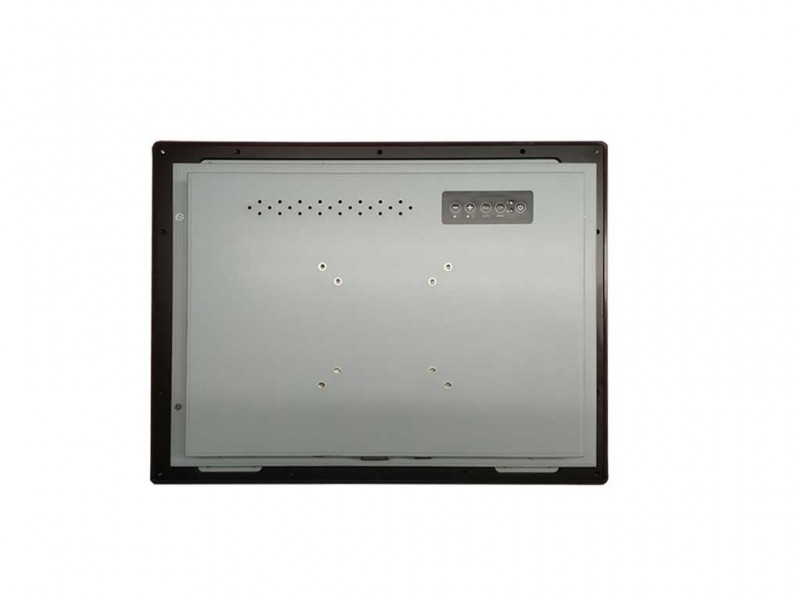

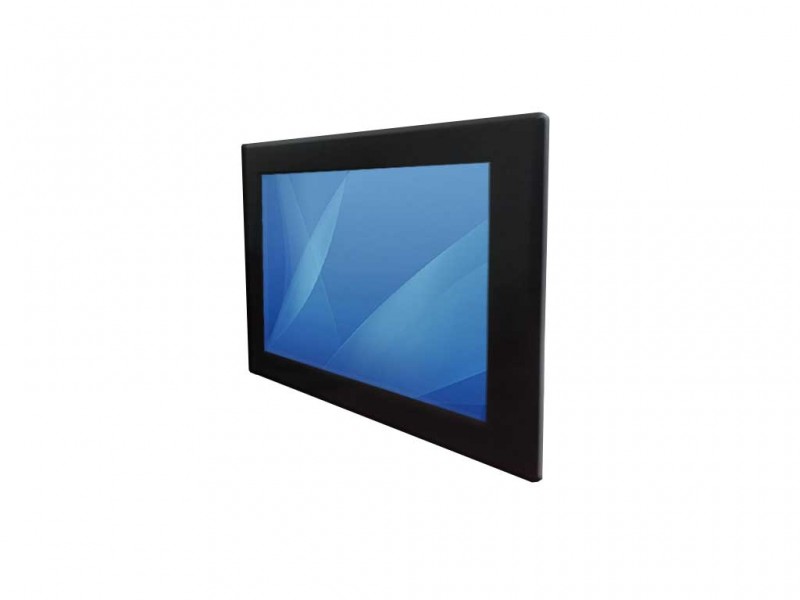

LPM-15R
Product Code:
LPM-15R
Availability:
Pre-Order
| Document | file size | Download Link |
|---|---|---|
 LPM-15R |
675.79KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 15” (4:3) LCD (LED backlight) |
| Resolution | 1024 x 768 @ 60Hz, 75Hz |
| Brightness | 250 (cd/m2) |
| Contract Ratio | 500 : 1 (typ.) |
| Max. Colors | 16.2M |
| Viewing Angle | -70~70 (H) ; -60~60 (V) |
| Touch Screen | 5-wire resistive touch screen |
| Active Area | 304.1 (H) x 228.1 (V) |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Input / Output | |
| USB Ports | 1 x USB for touch (optional) |
| VGA | 1 x VGA D-Sub 15 pin |
| DVI | 1 x DVI-D (optional) |
| HDMI | N/A |
| Video | S-Video, Composite (optional) |
| Power Input | 1 x 12V DC input |
| Power Specification | |
| Power Consumption | 25 W typical, normal operation |
| Power Input | DC Input, w/an AC to DC power adapter |
| Management | VESA DPMS compliant |
| Power Cord | Power cord provided by region |
| Environment Specification | |
| Operating Temperature | -5 deg. C to 50 deg. C |
| Operating Humidity | -40 deg. C to 70 deg. C |
| IP Level | Front IP65 |
| OSD | |
| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position, Auto-adjustment, Factory Settings |
| Order Options | |
| Touch | Vandal proof IR touch(for optional) |
| High brightness | High Brightness 1,000 nits |
| Wide range temp. | -30~ 55C Operating temperature(for optional) |
| Custom Color | Custom Color (for optional) |
