PPM-10WP

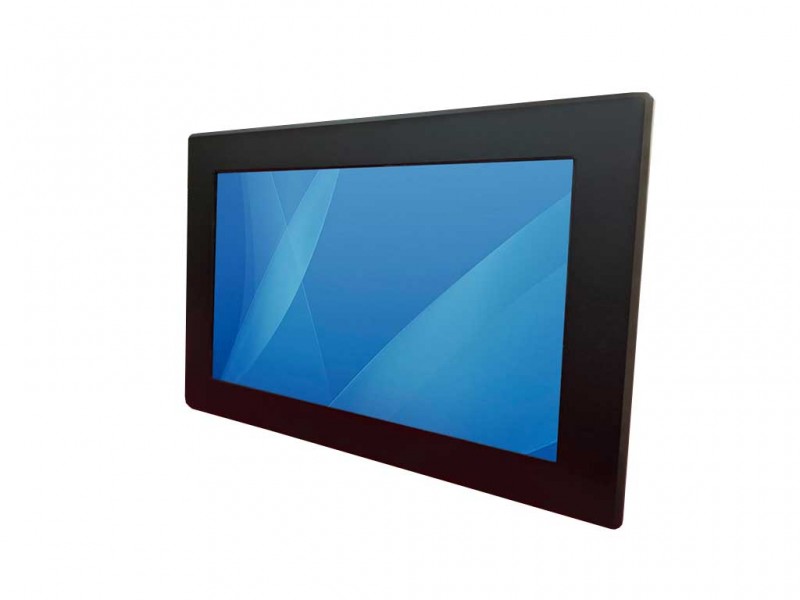

10.1“ (16: 9) Panel Mount Panel PC (Intel Apollo Lake platform)
Product Code:
PPM-10WP
Availability:
Pre-Order
•Brand new Intel Apollo Lake N4200 / N3550 CPU
•Front IP65
•Default Black Bezel, others for customized
•Linux Support
•Fanless Design
•Brand new Intel Apollo Lake N4200 / N3550 CPU
•Front IP65
•Default Black Bezel, others for customized
•Linux Support
•Fanless Design
| Panel Specification | |
|---|---|
| Size/ Type | 10.1” (16:9) TFT LCD |
| Resolution | 1024 x 600 |
| Brightness | 200 (cd/m2) |
| Contract Ratio | 500 : 1 (typ.) |
| Max. Colors | 262K colors |
| Viewing Angle | -70~70 (H) ; -50~60 (V) |
| Touch Screen | 5-wire resistive touch |
| System | |
| System Memory | DDR3L So-DIMM 2GB (max. 8GB) |
| Storage | 2.5” HDD 500GB |
| BIOS | AMI 64 MB Flash |
| Ethernet | Intel® i210 controller |
| CPU | Intel® Apollo Lake® N3350 1.1GHz |
| Graphic | Intel® Gen9 Graphic engine |
| I/O chipset | SCH3106 |

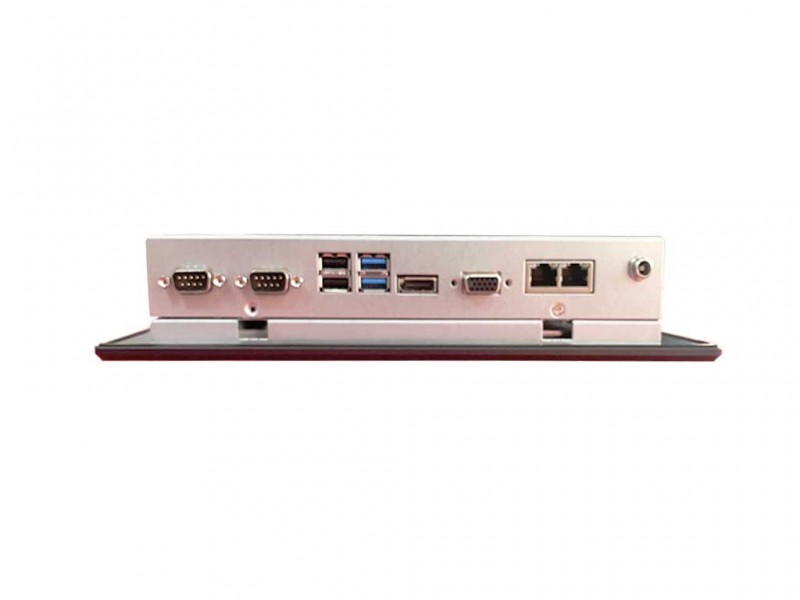

| Input / Output | |
| Serial Ports | 2 x RS232 |
| USB Ports | 2 x USB 2.0, 2 x USB 3.0 |
| Ethernet | 2 x RJ45 GbE LAN |
| Video | 1 x Display Port, 1 x VGA |
| Power | 12V DC Input (terminal block) |
| Power Specification | |
| Power Consumption | 18 watts (typical) |
| Power Input | 12V DC (Terminal Block) |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 55 deg. C |
| Operating Humidity | 30% to 90% (Non Condensing) |
| IP Level | IP65 in front |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Net Weight | 2.2 KG (Identity) |
| Order Options | |
| OS | Windows, Linux Ubuntu |
| Wireless LAN | 802.11 b/g/n wireless LAN (optional) |
