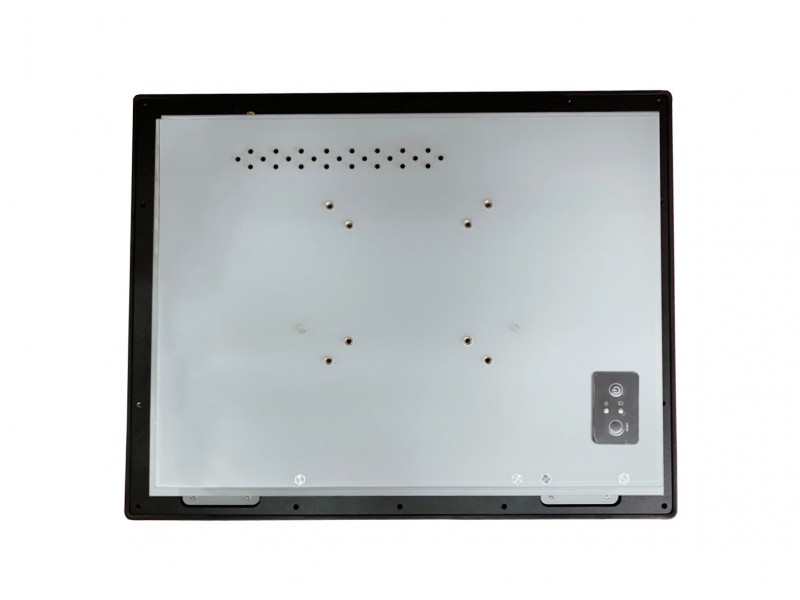

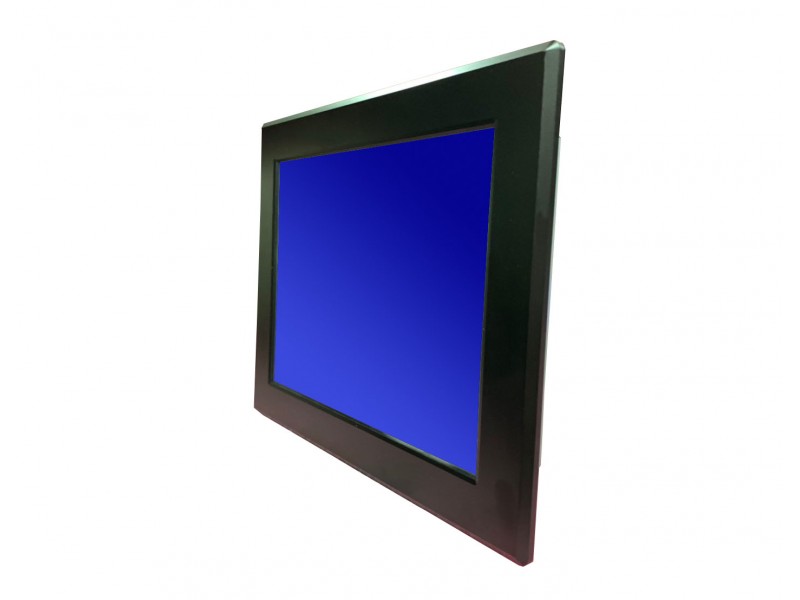

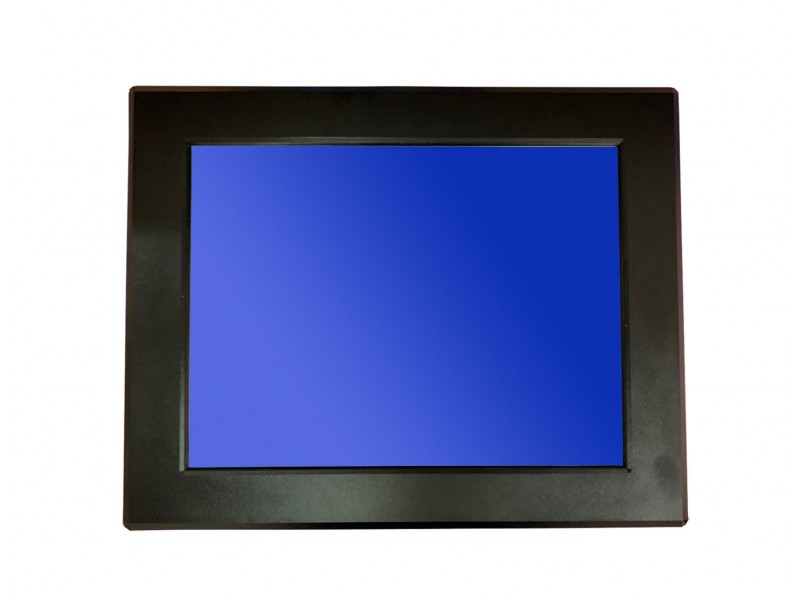

PPM-15RP-3LAN
15“ (4:3) Intel Apollolake Platform
Product Code:
PPM-15RP-3LAN
Availability:
In Stock
- Ultra low power consumption Apollolake platform
- Alu.front bezel / Panel Mount
- Front IP65 / Front IP69K Compatible
- Default black bezel, others for customized
Call for Price： .
- Ultra low power consumption Apollolake platform
- Alu.front bezel / Panel Mount
- Front IP65 / Front IP69K Compatible
- Default black bezel, others for customized
| Document | file size | Download Link |
|---|---|---|
 PPM-15RP-3LAN |
538.48KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 15” LCD (LED backlight) |
| Resolution | 1024 x 768 @ 60Hz, 75Hz |
| Brightness | 250 nits (cd/m2) |
| Contract Ratio | 500 : 1 (typ.) |
| Max. Colors | 16.2M (6 bits + FRC) |
| Viewing Angle | -70 ~ 70 (H); -60 ~ 60 (V) |
| Touch Screen | 5-wire resistive touch screen |
| Active Area | 304.1 (H) x 228.1 (V) |
| Pixel Pitch (mm) | 0.297 (H)x 0.297 (V) |
| System | |
| Processor | Intel® Apollolake N3350 Max. 2.4 Ghz |
| System Chipsets | Intel SoC integrated |
| System Memory | DDR3L 1866 SO-DIMM 4GB (default) |
| Storage | M.2 B-key SSD , 2.5 SATA SSD 32GB |
| BIOS | UEFI BIOS 128M bit |
| Ethernet | Dual Intel I211AT Controller |
| Watchdog | From Super I/O to drag RESETCON# |
| mPCIe | 1 x full size for 3rd LAN |
| Input / Output | |
| Serial Ports | 1 x RS232/422/485 (default RS232),1 x RS232 |
| USB Ports | 4 x USB 3.0 Type A Receptacle |
| Ethernet | 3 xRJ45 GbE LAN |
| VGA | 1 x HDMI output |
| Power | 1 x 3-pin terminal (DC 12~26V Input) |
| Power Specification | |
| Power Adapter | 1 x AC/DC power adapter |
| Power Consumption | 30 W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Power Cord provided by region |
| Environment Specification | |
| Operating Temperature | -5 deg. C to 50 deg. C |
| Operating Humidity | 10% to 95% (Non Condensing) |
| Storage Temperature | -30 deg. C to 70 deg. C |
