PPM-10WB

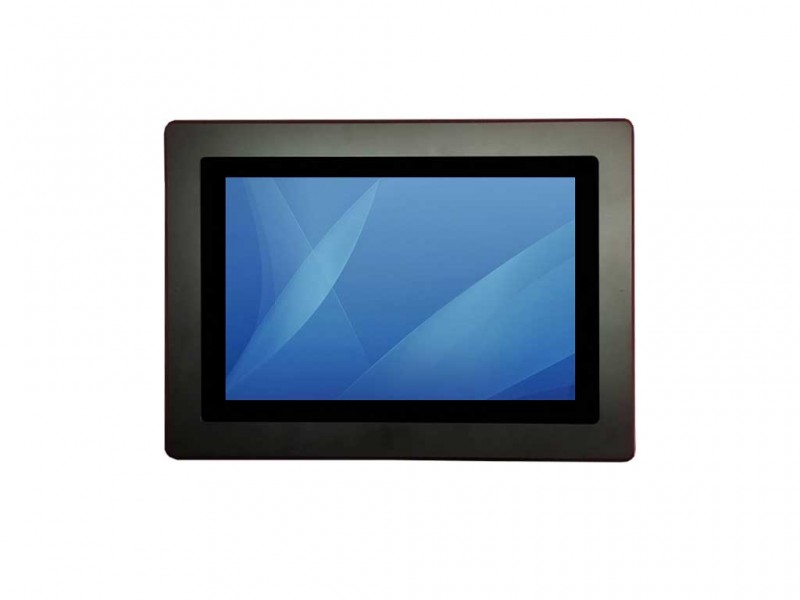

10.1“ (16:9) Panel Mount Panel PC (Intel Baytrail N2930 1.83Ghz)
Product Code:
PPM-10WB
Availability:
Pre-Order
| Document | file size | Download Link |
|---|---|---|
 PPM-10WB |
957.22KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 10.1” (16:9) TFT LCD |
| Resolution | 1280 x 800 |
| Brightness | 200 (cd/m2) |
| Contract Ratio | 500 : 1 (typ.) |
| Max. Colors | 262K colors |
| Viewing Angle | -70~70 (H) ; -50~60 (V) |
| Touch Screen | 5-wire resistive touch or P-cap multi-touch |
| System | |
| System Memory | DDR3L So-DIMM |
| Storage | mSATA SSD |
| Audio Codec | Realtek ALC886 HD Audio Codec |
| BIOS | AMI 16 MB Flash |
| Ethernet | Intel® Ethernet Controller I211-AT + Intel® Gigabit Ethernet PHY I218-LM |
| CPU | Intel® Bay Trail Celeron® N2930 1.83 GHz |
| Graphic | Integrated Intel® HD Graphics |
| I/O chipset | Fintek F81866 |

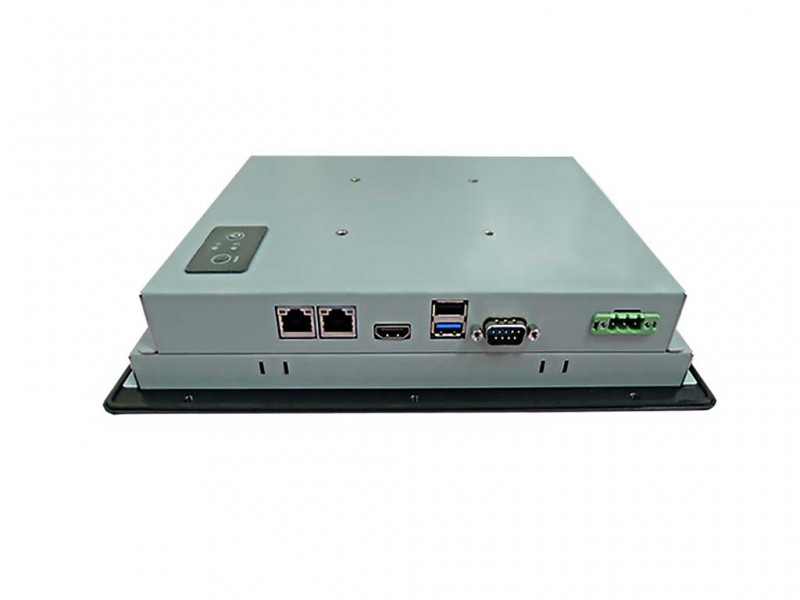

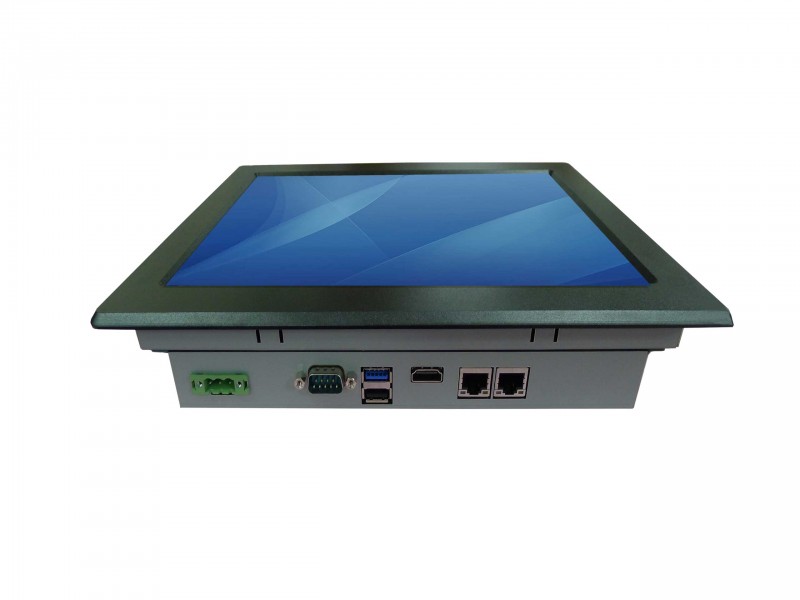

| Input / Output | |
| Serial Ports | 1 x RS232 |
| USB Ports | 1 x USB 2.0, 1 x USB 3.0 |
| Ethernet | 2 x RJ45 GbE LAN |
| HDMI | 1 x HDMI Out |
| Power | 12V DC Input (terminal block) |
| Power Specification | |
| Power Consumption | 18 watts (typical) |
| Power Input | 12V DC (Terminal Block) |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 50 deg. C |
| Operating Humidity | 30% to 90% (Non Condensing) |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Net Weight | 2.2 KG (Identity) |
