PPM-06RP

6.5“ (4:3) Intel Apollolake platform

Product Code: PPM-06RP

Availability: Pre-Order

•Intel Apollolake Platform

•Wide range operating temperature

•6.5” 640x480 LCD Panel

•Front IP65

•Intel Apollolake Platform

•Wide range operating temperature

•6.5” 640x480 LCD Panel

•Front IP65

Document	file size	Download Link
PPM-06RP	770.54KB	Download

Panel Specification
Size/ Type	6.5” LCD (LED backlight)
Resolution	640 x 480
Brightness	600 nits (cd/m2) 1,000 nits sunlight readable (optional)
Contract Ratio	600 : 1 (typ.)
Max. Colors	262,144 (6bit/colors)
Viewing Angle	-80~80 (H) ; -70~70 (V)
Touch Screen	5-wire resistive touch
Active Area	113.48 (H) x 99.36 (V)
Pixel Pitch (mm)	0.207 (H)x 0.207 (V)
System
System Memory	DDR3L 1867MHz So-DIMM 4GB (max. 8GB)
Storage	mSATA SSD
Expansion Slot	1xmPCIe (mSATA), 1x M.2 for WiFi option
Audio Codec	Realtek ALC886 HD Audio Codec
BIOS	AMI 16 MB Flash
WiFi	M.2 WiFi 802.11ac (for optional)
Housing Material	Alu. front bezel with robust rear metal sheet in rear
Ethernet	Dual Intel® I210-AT
CPU	Intel® Celeron® N3350 up to 2.4 GH
Graphic	Integrated Intel® Gen9 HD Graphics
4G LTE	4G LTE (for optional)

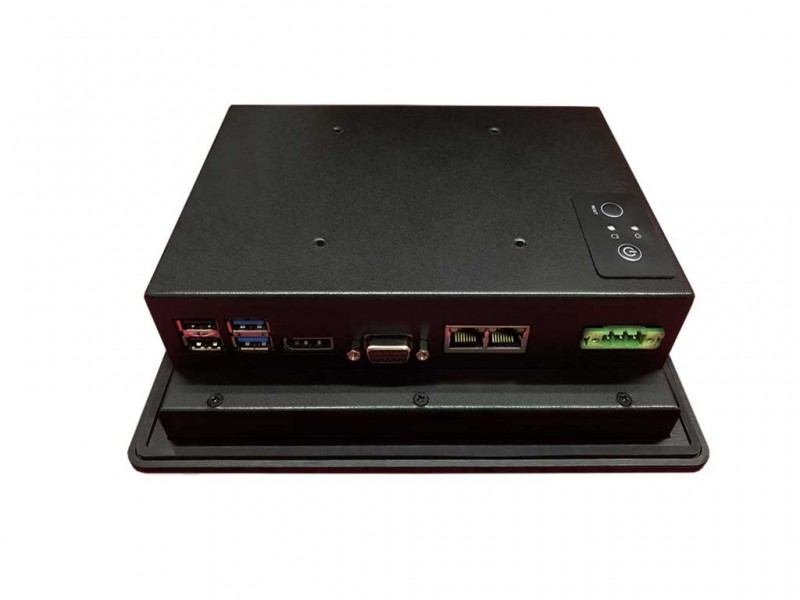

Input / Output
Serial Ports	1 x RS232/422/485
USB Ports	2 x USB 2.0, 2 x USB 3.0
Ethernet	2 x RJ45 GbE LAN
Video	1 x HDMI
Power	1 x DC 12V Input (Phoenix type)
Buttons	1 x On/Off, 1 x Reset buttons
Power Specification
Power Adapter	1 x AC/DC power adapter
Power Consumption	19 W typical, normal operation
Power Input	12V DC Input
Management	VESA DPMS compliant
Environment Specification
Operating Temperature	-20 deg. C to 70 deg. C
Operating Humidity	10% to 95% (Non Condensing)
Storage Temperature	-30 deg. C to 80 deg. C
Order Options
High brightness	1,000 nits high brightness
OS	Windows 10, Linux
Wireless LAN	802.11 b/g/n
4G LTE(Optional)	1 x 4G LTE
