PCH-17RE-4LAN

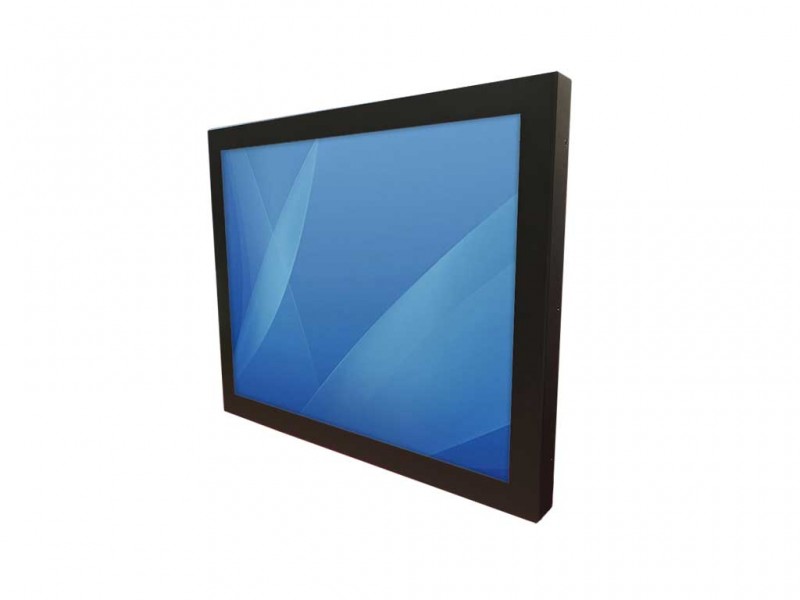

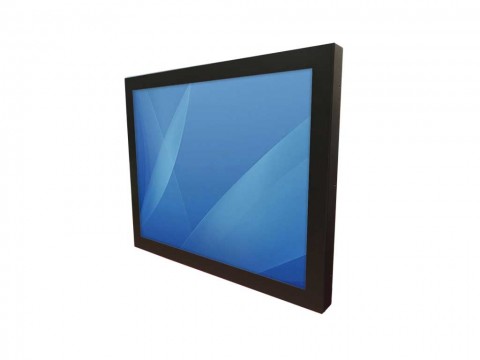

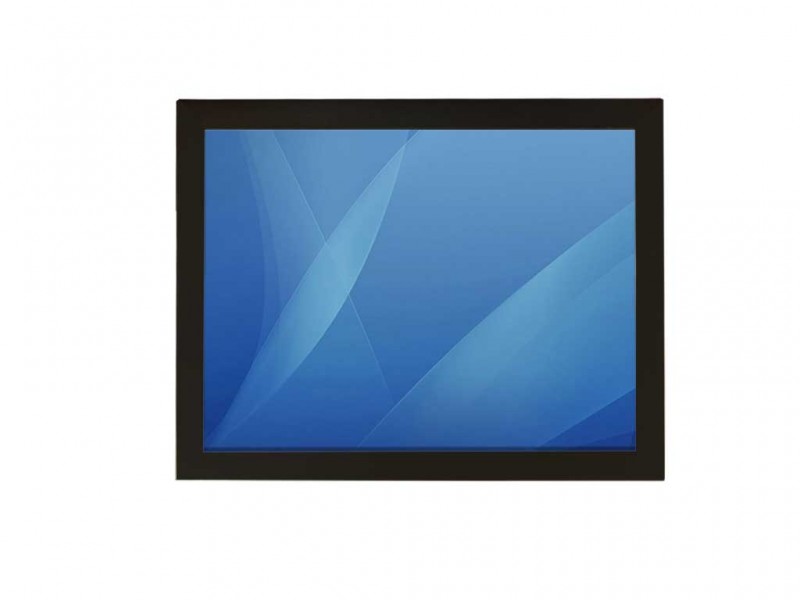

17“ (5:4) Intel Apollolake Platform with 4 Gbe LAN
Product Code:
PCH-17RE-4LAN
Availability:
Pre-Order
•Ultra low power consumption Apollolake platform
•4 x LAN
• Front IP65 / fanless design
•Ultra low power consumption Apollolake platform
•4 x LAN
• Front IP65 / fanless design
| Document | file size | Download Link |
|---|---|---|
 PCH-17RE-4LAN |
746.14KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 17” (4:3) LCD |
| Resolution | 1280 x 1024 |
| Brightness | 300 (typ.) |
| Contract Ratio | 1000 : 1 (typ.) |
| Max. Colors | 16.7M |
| Viewing Angle | -85~85 (H) ; -80~80 (V) |
| Touch Screen | 5-wire resistive touch screen (Default) |
| System | |
| Processor | Intel® Apollolake E3940/3950 Max. 2.4 Ghz |
| System Chipsets | Intel® SoC integrated |
| System Memory | DDR3L 1866 SO-DIMM 4GB (default) |
| Storage | M.2 B-key SSD 64GB (default) |
| BIOS | UEFI BIOS 128M bit |
| OS Support | Win10 , Linux supported |
| Ethernet | 4 x GbE LAN ports |
| Ethernet | Dual Intel I211AT Controller |
| Watchdog | From Super I/O to drag RESETCON# |

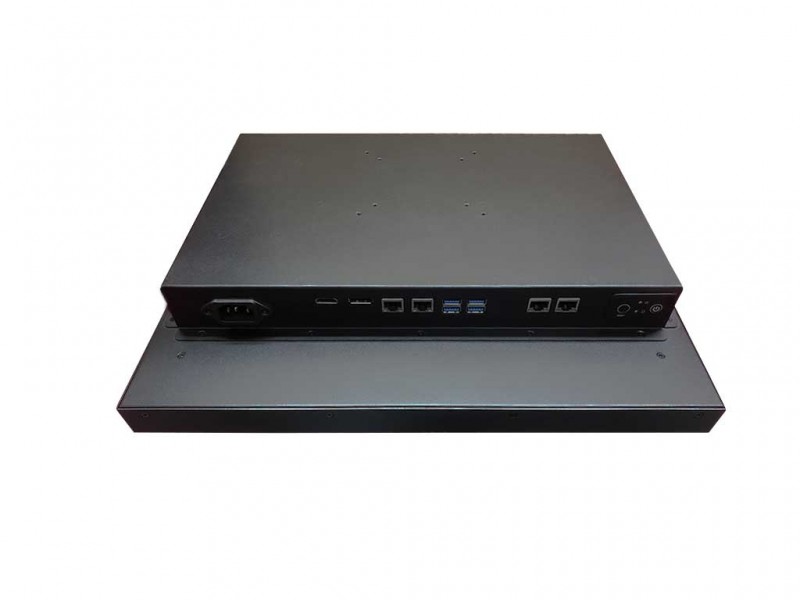

| Input / Output | |
| Serial Ports | 1 x RS232/422/485 (Optional) |
| USB Ports | 4 x USB 3.0 Type A Receptacle |
| Ethernet | 4 x RJ45 GbE LAN |
| HDMI | 1 x HDMI Output |
| Power Input | 1 x AC power input |
| DP | 1 x DP Output |
| Power Specification | |
| Power Adapter | N/A |
| Power Consumption | 30 W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Power Cord provided by region |
| Environment Specification | |
| Operating Temperature | -15 deg. C to 50 deg. C |
| Operating Humidity | 10% to 95% (Non Condensing) |
| Storage Temperature | -30 deg. C to 70 deg. C |
•Ultra low power consumption Apollolake platform
•4 x LAN
• Front IP65 / fanless design
