MBX-IK3-101

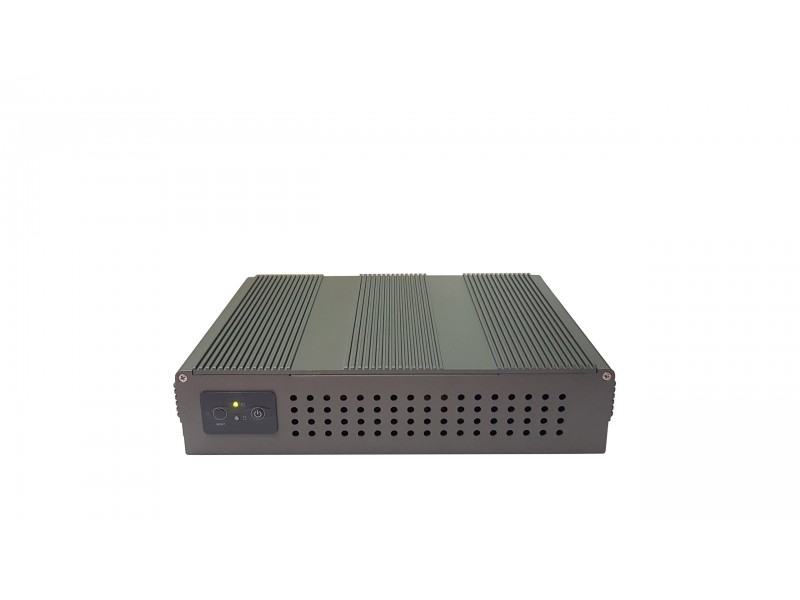

Intel® 7th Generation Kabylake Processor, Fanless Box PC
6 x USB, 4 x COM
Product Code:
MBX-IK3-101
Availability:
Pre-Order
Features:
1. Slim, compact size, fanless cooling
2. Intel® Kabylake Core i5® 7200U 2.5 GHz
3. Multi-I/Os, 4xUSB3.0, 2xUSB2.0, 4xRS232, 1xHDMI, 1xDP
Call for Price： .
Features:
1. Slim, compact size, fanless cooling
2. Intel® Kabylake Core i5® 7200U 2.5 GHz
3. Multi-I/Os, 4xUSB3.0, 2xUSB2.0, 4xRS232, 1xHDMI, 1xDP
| Document | file size | Download Link |
|---|---|---|
 MBX-IK3-101_Datasheet |
584.87KB | Download |
| System | |
|---|---|
| Processor | Intel® Kabylake Core i5® 7200U 2.5 GHz |
| System Chipsets | Intel SoC Integrated |
| System Memory | DDR3L So-DIMM 4GB (max. 16GB) |
| Storage | SATAIII HDD 500GB or mSATA SSD 64GB |
| LAN | Intel® I218LM+I211AT GbE controller |

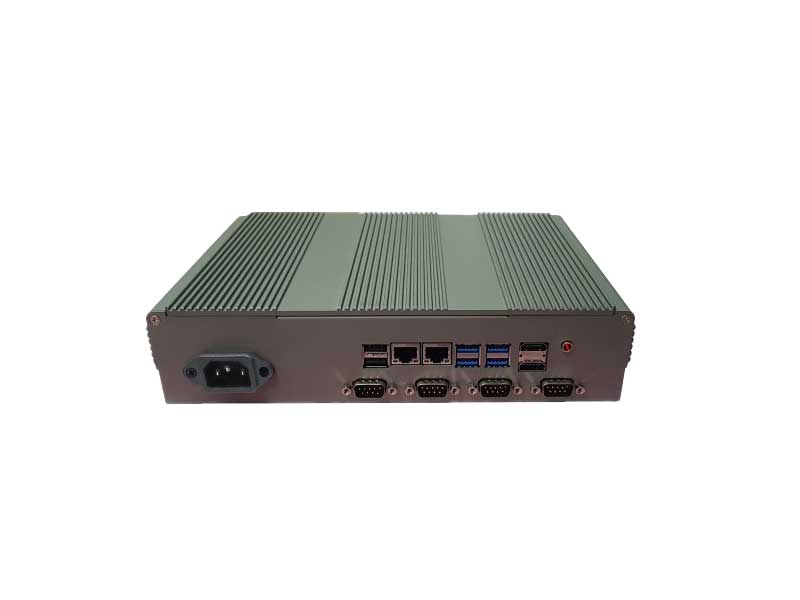

| Input / Output | |
| Serial Ports | 4 x RS232 |
| USB Ports | 4 x USB 3.0 , 2 x USB 2.0 |
| Ethernet | 2 x RJ45 GbE LAN |
| HDMI | 2 x HDMI |
| Power | IEC320 C14 |
| Power Specification | |
| Power Consumption | 30 Watt (Typ.) |
| Power Input | AC Power Input |
| Environment Specification | |
| Operating Temperature | -10 ~ 60 degC |
| Operating Humidity | 10 ~ 95% RH (Non Condensing) |
| Storage Temperature | -30 ~ 70 degC |
| Vibration | 5Hz~500Hz / 1Grms/3 Axis |
| Shock | 10G, 11ms duration |
