FBX-T7E

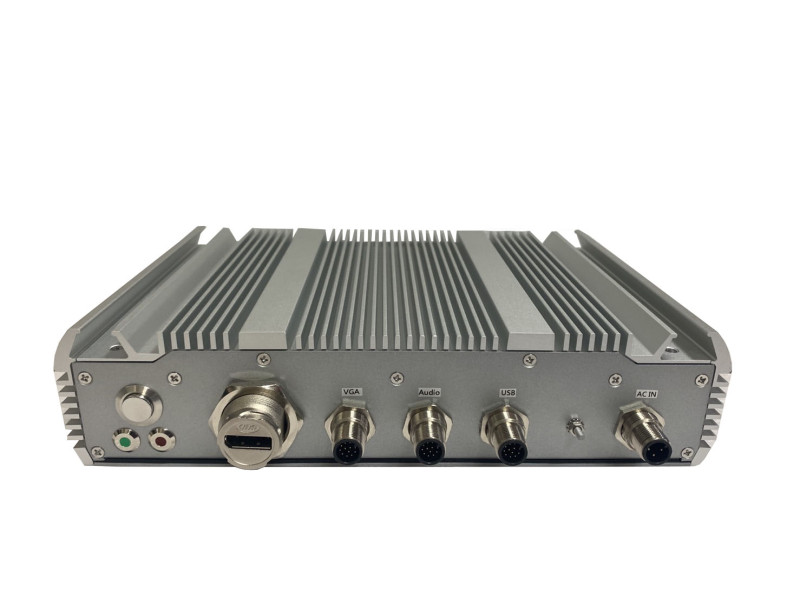

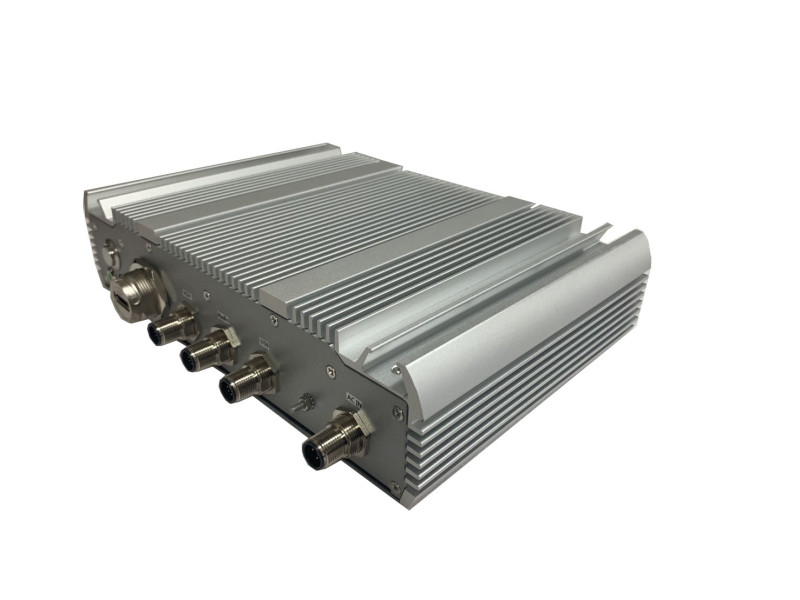

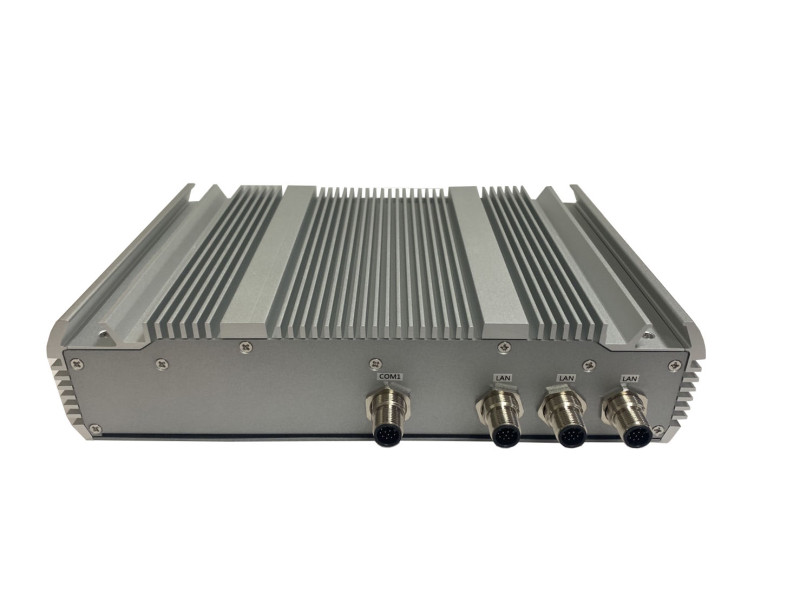

Full-IP67 Compact Embedded Computer
Product Code:
FBX-T7E
Availability:
Pre-Order
Features:
1. Slim, compact size
2. Full-IP67 Sealed
3. Multi-I/Os (M12 connectors)
4. Wall Mount
Call for Price： .
Features:
1. Slim, compact size
2. Full-IP67 Sealed
3. Multi-I/Os (M12 connectors)
4. Wall Mount
| System | |
|---|---|
| Processor | Intel® 11th Generation Tigerlake Core i5 1135G7/1145G7E |
| System Chipsets | Intel SoC Integrated w/HD graphics |
| System Memory | 2x DDR4 SO-DIMM 3200, up to 32GB |
| Storage | 1 x M.2 SSD |
| LAN | Intel® I219 GbE+ I225LM |
| Input / Output | |
| Serial Ports | 1 x RS232 (RS422/485 for optional) |
| USB Ports | 2 x USB 2.0, 1xUSB3.0 (Type A) |
| Ethernet | 2 x GbN LAN (max. up to 4x LAN) |
| VGA | 1 x VGA |
| Power | 1 x DC Input (IP65 connector) |
| DP | 1 x DP |
| Power Specification | |
| Power Input | 12V DC (9~36V DC for optional) |
| Environment Specification | |
| Operating Temperature | 0 ~ 55 degC |
| Operating Humidity | 5 ~ 95% RH (Non Condensing) |
| IP Level | Full IP67 |
| Storage Temperature | -30 ~ 85 degC |
| Vibration | 5Hz~500Hz / 1Grms/3 Axis |
| Shock | 20G, 11ms duration |
| Weight | |
| Dimensions | 256 x 170 x 57.7 mm |
