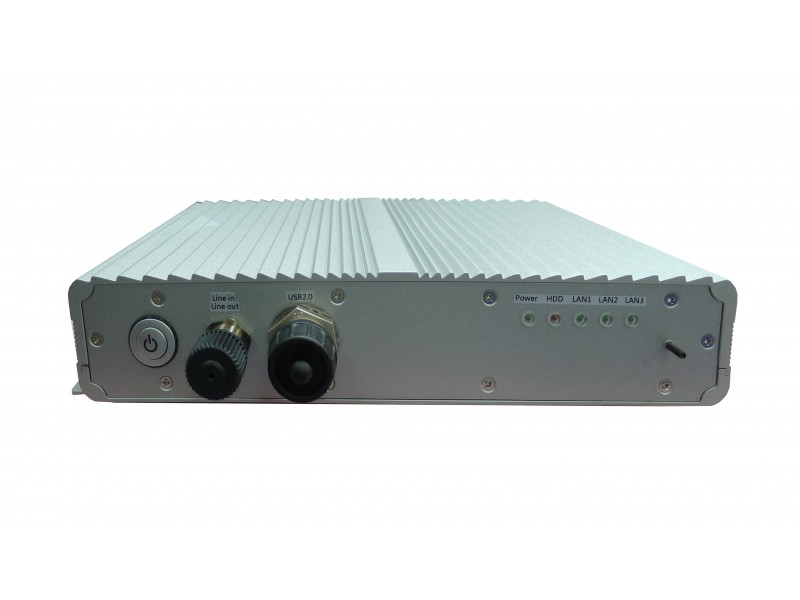

FBX-K72 Full-IP65 Box PC (Intel Kabylake Platform).. Product #: FBX-K72 Pre-Order


Full-IP65 Box PC (Intel Kabylake Platform)
Product Code: FBX-K72
Availability: Pre-Order


Call for Price: .


Document file size Download Link
FBX-K72 599.58KB Download
System Chipsets Intel SoC Integrated w/HD graphics
System Memory DDR4L SO-DIMM 1866/2133 Default 8GB (UP to 16GB)
Storage 1 x mSATA SSD (32~ 256GB)
Expansion Slot 1 x M.2 for WiFi 802.11 ac
Audio Codec Realtek ALC886 HD Audio Codec
BIOS AMI 64Mbit Flash
Housing Material Fully sealed Aluminum with anti-corrosion coating
Ethernet Intel® i210-AT controller Intel®i219-LM controller
CPU Intel 7th Kabylake Core i5 7200U 2.5Ghz
Graphic Intel® Gen9 HD Graphic engine
System Indicator 1 x Power LED, 1 x HDD LED, 1x LAN indicator
Power Input 9~36V Power Input
Input / Output
Serial Ports 3 x RS232
USB Ports 2 x USB 2.0
Ethernet 1 x RJ45 GbE LAN
Video 1 x VGA Output
Audio 1 x Line in / Out
USB 1 x USB 2.0 TypeA-Female (optional
Power Input 1 x 9~36V Power Input
Power Button 1 x Power Button
Environment Specification
Operating Temperature -40 deg. C to 80 deg. C
Operating Humidity 5% to 95% (Non Condensing)
IP Level Full- IP65
Storage Temperature -40 deg. C to 80 deg. C
Vibration 5Hz~500Hz / 1Grms/3 Axis
Shock 15G, 11ms duration
Dimensions and Weight
Dimensions 261 x 168 x 50mm ( L x W x H )
Weight ~1.5Kg
