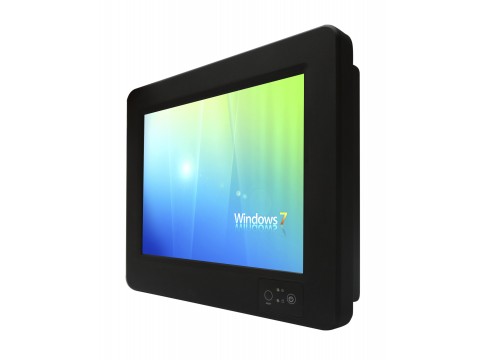

RDC-10RB
Rugged and Full-IP67, 10.4“ LCD with Intel Baytrail Platform
Product Code:
RDC-10RB
Availability:
Pre-Order
- Full-IP67 Rugged, Compact Housing
- Intel Baytrail N2930 1.83Ghz Processor
- MIL-STD-810G in vibration, shock
- -20 ~ 60deg C Operating Temperature
- Anti- Acid, Anti- Corrosion Anodized Coating
- Arc frame design, no sharp edges
- 5-wire resistive touch screen
Call for Price： .
- Full-IP67 Rugged, Compact Housing
- Intel Baytrail N2930 1.83Ghz Processor
- MIL-STD-810G in vibration, shock
- -20 ~ 60deg C Operating Temperature
- Anti- Acid, Anti- Corrosion Anodized Coating
- Arc frame design, no sharp edges
- 5-wire resistive touch screen
| Document | file size | Download Link |
|---|---|---|
 RDC-10RB_Datasheet |
462.19KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 10.4-inch TFT LCD |
| Resolution | 1024x768 |
| Brightness | 350 nits |
| Contract Ratio | 1200 : 1 |
| Max. Colors | 16.2M |
| Viewing Angle | -88~88 (H); -88~88 (V) |
| Touch Screen | 5-wire resistive touch screen |
| System | |
| Processor | Intel Baytrail N2930 1.83GHz |
| System Chipsets | Intel Baytrail SoC Integrated |
| System Memory | DDR3 4GB (default, up to 8GB max.) |
| Storage | mSATA 64GB SSD |
| LAN | Intel® Intel WG82574L GbE controller |
| BIOS | AMI 16MB Flash |
| OS Support | Windows 7Pro Embedded, Windows 10 IOT, Linux Ubuntu |
| Control Button | 1 x Power On/Off, 1 x Reset |
| Mounting Type | 75x75 VESA Mount |
| Input / Output | |
| Serial Ports | 1 x RS232 (IP67 connector) |
| USB Ports | 2 x USB2.0 (IP67 connector) |
| Ethernet | 1 x GbE Ethernet (IP67 connector) |
| VGA | For optional |
| Power | 1 x DC In (IP67 connector) |
| Power Specification | |
| Power Adapter | NA |
| Power Consumption | Less than 60watt |
| Power Input | 9~36V DC Input |
| Environment Specification | |
| Operating Temperature | -20~ 60 degC |
| Operating Humidity | 5~95% RH(Non-condensing) |
| IP Level | Full-IP67 |
| Storage Temperature | -30~80 degC |
| Vibration | MIL-STD-810G Method 514.6C-3 Procedure I |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Dimensions and Weight | |
| Dimensions | 280x240x75mm |
| Weight | 5.5 KG |
