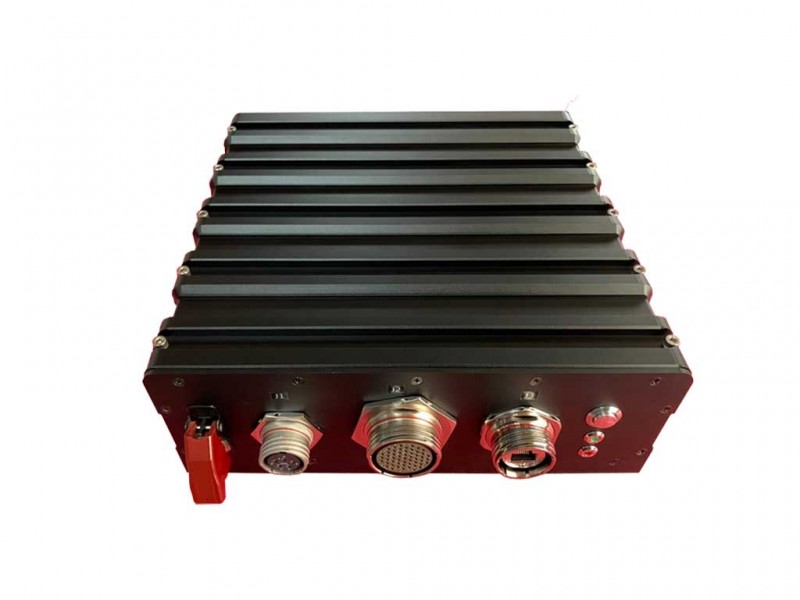

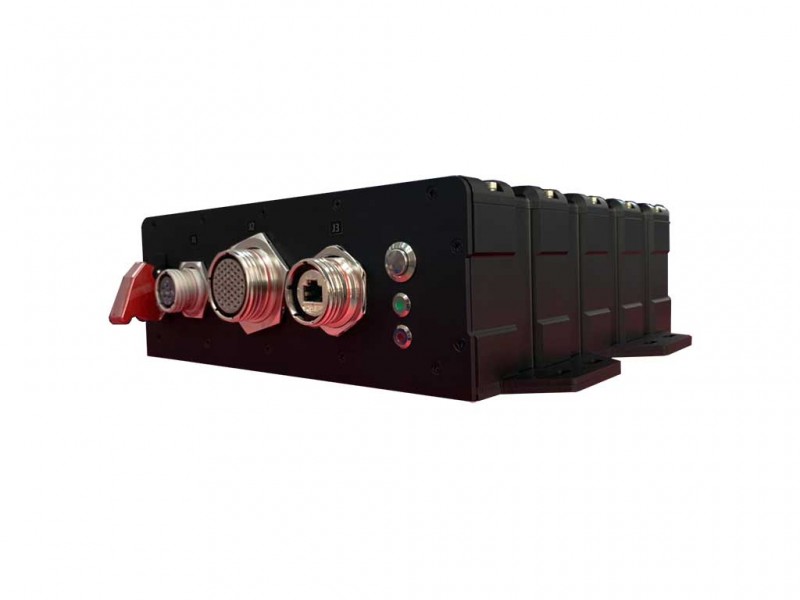

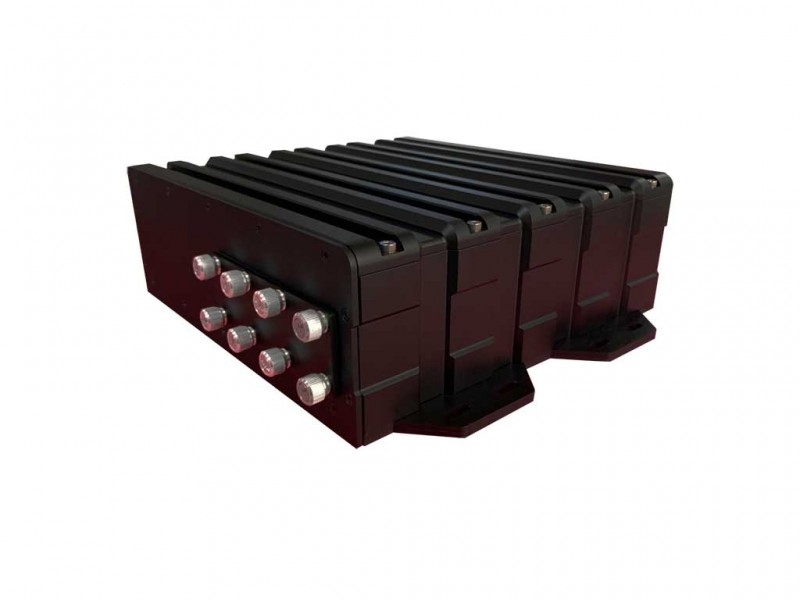

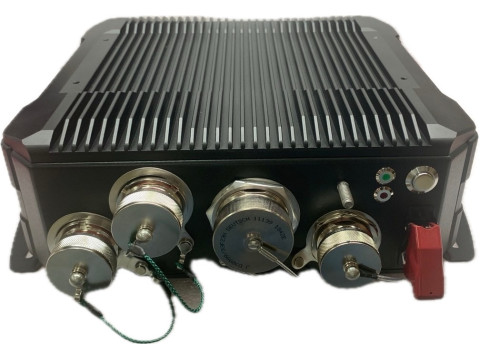

RML-S67-10G
Product Code:
RML-S67-10G
Availability:
Pre-Order
| Document | file size | Download Link |
|---|---|---|
 RML-S67-10G |
884.22KB | Download |
| System | |
|---|---|
| System Chipsets | Intel Mobile H310 |
| System Memory | DDR4 2133 MHz, up to 64GB |
| Storage | 1 x M.2, 1 x 2.5” Storage bay |
| BIOS | AMI 128Mbit Flash |
| Ethernet | Intel® i219-LM+ Intel® i225-V Ethernet |
| Cooling system | Fanless |
| CPU | Intel® Coffee Lake 9th Gen. Core i7-9700TE, Up to 3.8GHz |
| Graphic | Intel® HD Graphics |
| System Indicator | 1 x Power LED, 1 x HDD LED |
| Power Input | +9~36V DC Input |
| Connector | Military D38999 III |
| Power Switch | 1 x Toggle switch |
| Removable Slot | Removable slot for 1x 2.5” storage |
| Input / Output | |
| Serial Ports | 1 x RS232 in D38999/24WH53SN (RS422/RS485/GPIO for optional) |
| USB Ports | 2 x USB2.0 in in D38999/24WH53SN |
| Ethernet | 2 x GbE ethernet in in D38999/24WH53SN, 2x 10GbE in RJFTV67A1NF312 |
| HDMI | 1 x HDMI in D38999/24WH53SN |
| Power | 1 x Power input in D38999/24WD5SN |
| Environment Specification | |
| Operating Temperature | -20 deg. C to 65 deg. C |
| Operating Humidity | 5% to 95% (Non Condensing) |
| IP Level | Full IP67 |
| Storage Temperature | -40 deg. C to 80 deg. C |
| EMI/EMC | MIL-STD-461F CE102,RE102 Compliance |
| Reliability | MIL-STD-810G vibration shock |
| Dimensions and Weight | |
| Dimensions | 277.0 x 250.0 x 98.5 mm ( W x D x H ) |
| Weight | 5~6 KG for identity |
