LCH-22W-CP

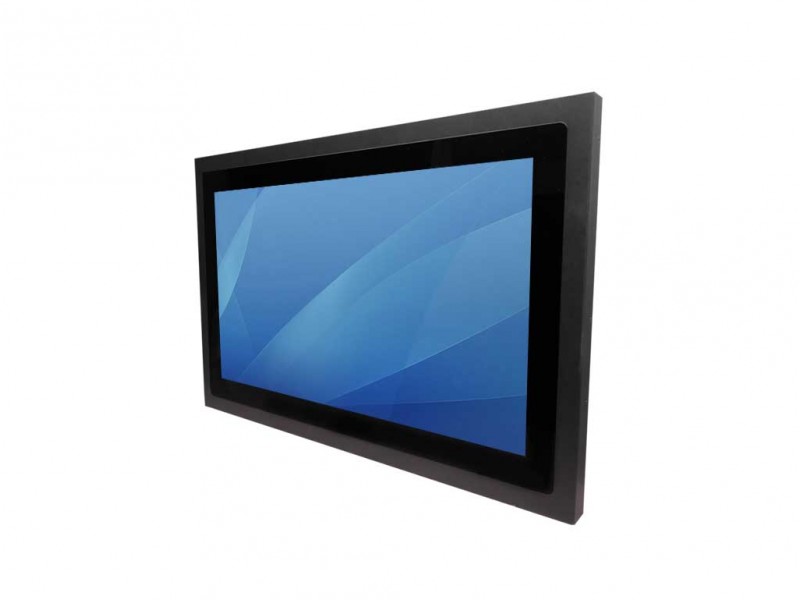

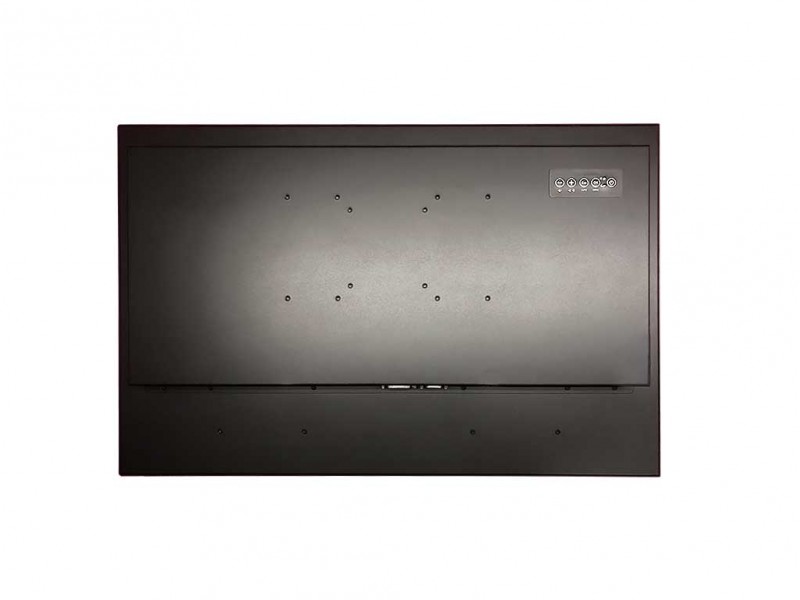

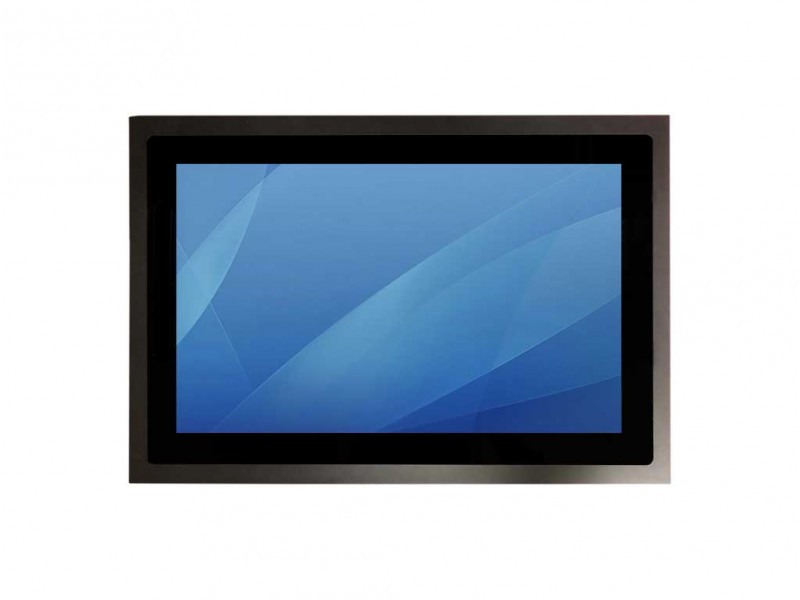

21.5” LCD Rugged Monitor
Product Code:
LCH-22W-CP
Availability:
Pre-Order
| Document | file size | Download Link |
|---|---|---|
 LCH-22W-CP |
564.67KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 21.5” LCD (LED backlight) |
| Resolution | 1920 x 1080 @60Hz |
| Brightness | 250 nits (cd/m2) 1,200 nits high brightness (optional) |
| Contract Ratio | 1000 : 1 (typ.) |
| Max. Colors | 16.7M (8 bits + FRC) |
| Viewing Angle | -85~85 (H) ; -80~80 (V) |
| Touch Screen | 5-wire resistive touch or Projective-capacitive touch Either one |
| Active Area | 476.64(H) x 268.11 (V) |
| Pixel Pitch (mm) | 0.248(H)x 0.248(V) |
| Touch | P-cap multi-touch (USB) |
| Anti reflection | Anti-UV film (optional) |
| Input / Output | |
| VGA | 1 x VGA D-sub 15pin |
| DVI | 1 x DVI-D |
| HDMI | 1 x HDMI Input (optional) |
| USB | 1 x USB for touch |
| Power Input | 1 x DC input (terminal block) |
| DP | 1 x DP (optional) |
| Power Specification | |
| Power Adapter | N/A |
| Power Consumption | 50 W typical, normal operation |
| Power Input | 9-36V DC power input |
| Power Cord | N/A |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 55 deg. C |
| Operating Humidity | 5~95% non-condensing |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Vibration | 1G rms for XYZ / 5-500Hz |
| Shock | 10G for 20msec. /300m/s2 |
| OSD | |
| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position, Auto-adjustment, Factory Settings |
