LPM-22W-ST

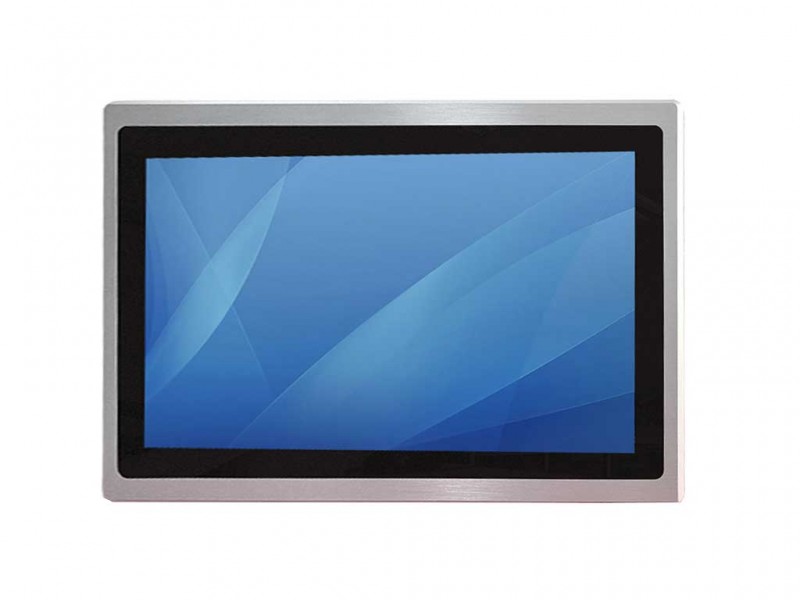

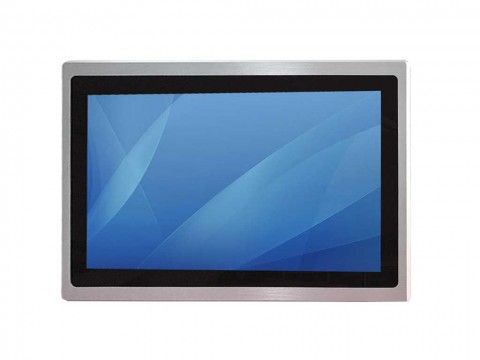

21.5” Wide Screen / Front -IP65 / Panel Mount Monitor
Product Code:
LPM-22W-ST
Availability:
Pre-Order
| Document | file size | Download Link |
|---|---|---|
 LPM-22W-ST |
580.81KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 21.5” LCD (LED backlight) |
| Resolution | 1920 x 1080 @ 60Hz |
| Brightness | 250 nits (cd/m2) (1,000 nits for optional) |
| Contract Ratio | 1000 : 1 (typ.) |
| Max. Colors | 16.7M (6 bits + FRC) |
| Viewing Angle | -85 ~ 85 (H); -80 ~ 80 (V) |
| Touch Screen | 5-wire resistive touch or P-cap multi-touch |
| Active Area | 476.64(H) x 268.11 (V) |
| Pixel Pitch (mm) | 0.248(H)x 0.248(V) |
| System | |

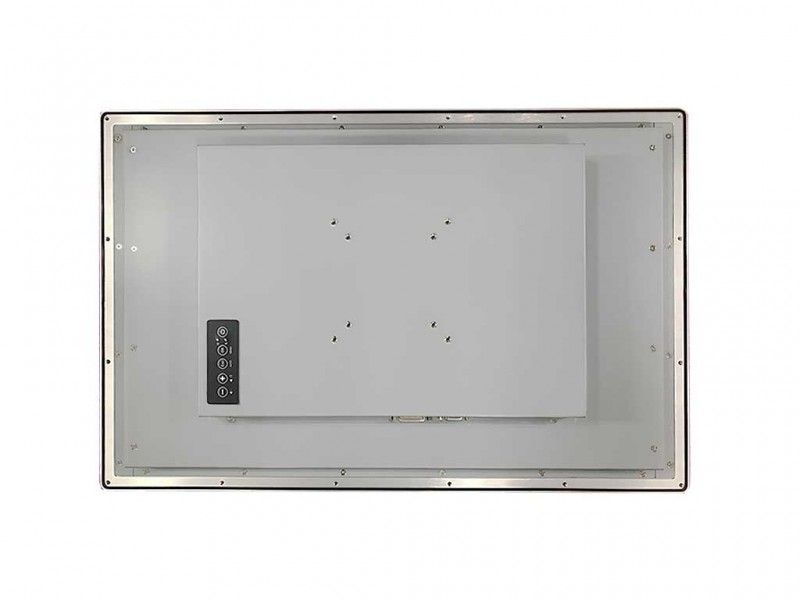

| Mounting Type | Panel mount |
| Front Bezel | Stainless steel front bezel |
| Input / Output | |
| VGA | 1 x VGA |
| DVI | 1 x DVI-D |
| HDMI | 1 x HDMI (optional) |
| USB | 1 x USB for touch (optional) |
| Power Input | 1 x DC input (terminal block) |
| DP | 1 x DP (optional) |
| Power Specification | |
| Power Adapter | 1 x External AC to DC power adapter |
| Power Consumption | 40 W typical, normal operation |
| Power Input | 12V DC Input(9~36V DC or 110-240V AC for optional) |
| Management | VESA DPMS compliant |
| Power Cord | 1 x Power Cord |
| Environment Specification | |
| IP Level | Front IP65 |
| Storage Temperature | -30 deg. C to 70 deg. C |
| Order Options | |
| Touch | 5-wire resistive touch Or P-cap touch screen |
| High brightness | 1,000 nits (for optional) |
| Accessory | |
| Cable | 1 x 1.5m VGA cable 1 x 1.5m DVI cable 1 x 1.5m Power cable |
| Driver CD | 1 x Driver CD for touch screen(Resistive touch) |
