LOF-17R

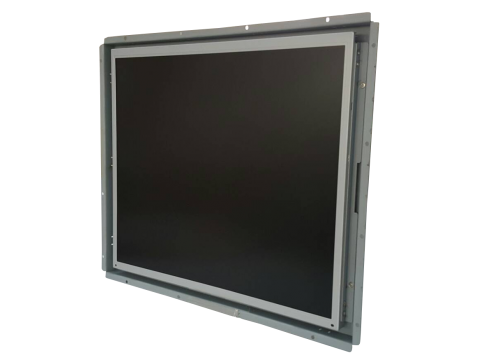

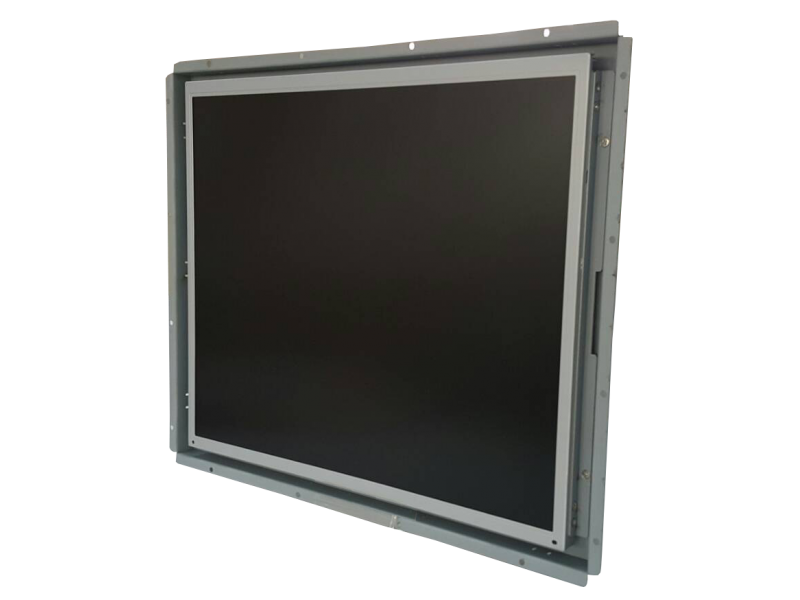

17" (4:3) Open Frame Monitor
Product Code:
LOF-17R
Availability:
Pre-Order
- 17" (4:3) LCD (LED backlight)
- AR protective glass or 5-wire resistive touch screen (optional)
- VGA, DVI Input
- 350nits in brightness (1,000 nits high brightness for optional)
- Open frame type with 75, 100 VESA Mount
Call for Price： .
- 17" (4:3) LCD (LED backlight)
- AR protective glass or 5-wire resistive touch screen (optional)
- VGA, DVI Input
- 350nits in brightness (1,000 nits high brightness for optional)
- Open frame type with 75, 100 VESA Mount
| Document | file size | Download Link |
|---|---|---|
 LOF-17R_Datasheet |
439.09KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 17-inch (4:3) LCD |
| Resolution | 1280 x 1024 |
| Brightness | 350 nits |
| Contract Ratio | 1000:1 |
| Max. Colors | 16.7M Colors |
| Viewing Angle | -85~85 (H); -80~80 (V) |
| Touch Screen | 5-wire resistive touch (Optional) |
| Dimming | 0~100% Dimming (for optional) |
| Glass | AR protective touch(Touch and glass either one) |
| System | |
| Control Button | 5-key OSD control buttons |
| Mounting Type | 75x75, 100x100 VESA Mount |
| Input / Output | |
| VGA | 1 x D-sub 15pin VGA Input |
| DVI | 1 x DVI Input |
| HDMI | 1 x HDMI (for optional) |
| Video | 1 x AV (or BNC) (for optional) |
| Power | 1 x terminal block power input |
| Power Specification | |
| Power Adapter | External AC to DC power adapter |
| Power Input | 12V DC Input (9~36V wide range DC-IN for optional) |
| Environment Specification | |
| Operating Temperature | 0 ~ 50 degC |
| Operating Humidity | 10 ~ 95% RH (Non-condensing) |
| Storage Temperature | -20 ~ 70 degC |
| Dimensions and Weight | |
| Dimensions | 408x330x44.2mm (WxHxD) |
| Weight | 5KG |
