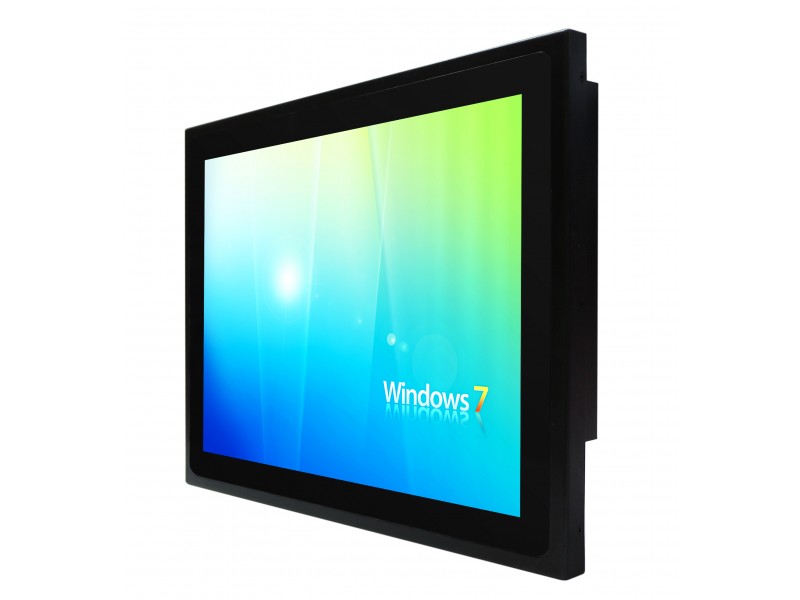

LCH-15W-SDI
15.6" 1080p HD-SDI Input monitor w/P-cap touch screen
Product Code:
LCH-15W-SDI
Availability:
Pre-Order
- HD-SDI Monitor
- 15.6" 1920x1080, 400nits Display
- P-cap multi-touch screen
- VGA / DVI /HD-SDI Input
- 12V DC Power Input
Call for Price： .
- HD-SDI Monitor
- 15.6" 1920x1080, 400nits Display
- P-cap multi-touch screen
- VGA / DVI /HD-SDI Input
- 12V DC Power Input
| Document | file size | Download Link |
|---|---|---|
 LCH-15W-SDI |
511.01KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 15.6 Inch |
| Resolution | 1920x1080 |
| Brightness | 400nits |
| Contract Ratio | 500 : 1 |
| Max. Colors | 262K colors (6 bits) |
| Viewing Angle | -70 ~ 70 (H); -60 ~ 60 (V) |
| Touch Screen | P-cap multi-touch |
| Active Area | 344 (H) x 194 (V) |
| System | |
| Mounting Type | VESA Mount |
| Housing Material | Aluminum alloy |
| Input / Output | |
| USB Ports | 1 x USB for touch screen |
| VGA | 1 x VGA |
| DVI | 1 x DVI (optional) |
| HD-SDI | 1 x HD-SDI (3G-SDI for optional) |
| Power Specification | |
| Power Adapter | 1 x Ext. AC/DC power adapter |
| Power Input | 12V DC |
| Environment Specification | |
| Operating Temperature | -10 ~ 55 deg.C |
| Operating Humidity | 5~95% (non-condensing) |
| IP Level | Front IP65 |
| Storage Temperature | -30~70 deg.C |
| Dimensions and Weight | |
| Dimensions | 396 x 245 x 46mm (WxLxD) |
| Weight | 2.5 KG |
HD-SDI Monitor
15.6" 1920x1080, 400nits Display
VGA / DVI / HD-SDI Input
12V DC Input
P-cap touch screen
