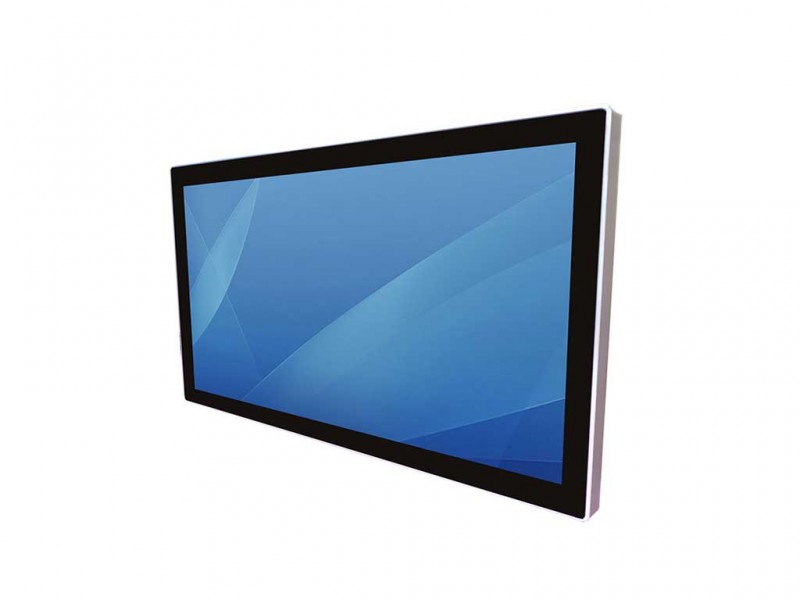

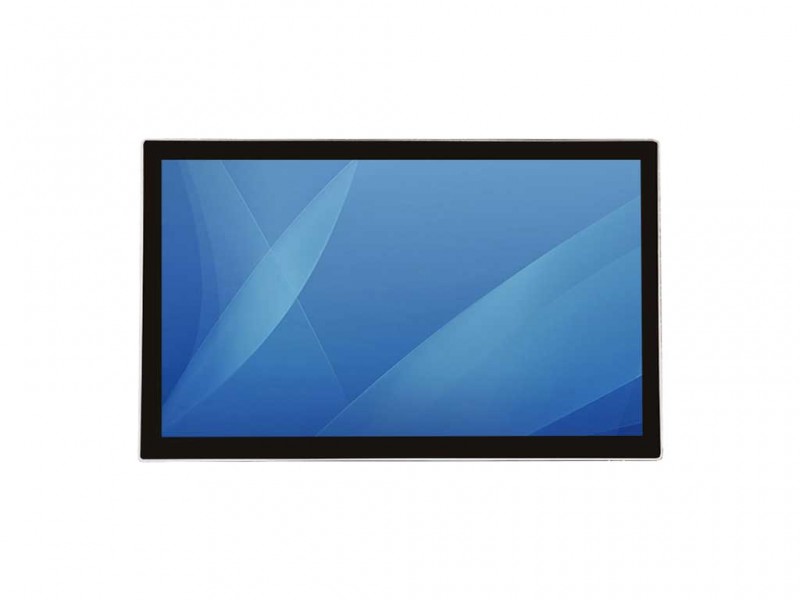

PFS-18WH-HD

18.5" True Flat Panel PC (Intel BroadwellCore i5 5200U platform)

Product Code: PFS-18WH-HD

Availability: Pre-Order

•LED Backlight HD Display

•Intel BroadwellCore i5 5200U CPU

•-10~55deg.C Wide Range Operating Temperature

•Projected Capacitive Multi Touch Screen

•Front-IP65 Protection

•LED Backlight HD Display

•Intel BroadwellCore i5 5200U CPU

•-10~55deg.C Wide Range Operating Temperature

•Projected Capacitive Multi Touch Screen

•Front-IP65 Protection

Document	file size	Download Link
PFS-18WH-HD	903.94KB	Download

Panel Specification
Size/ Type	19” wide (16:9, 18.5” in diagonal) LED backlight
Resolution	1920 x 1080 @60Hz
Brightness	1,000 nits (cd/m2)
Contract Ratio	1000 : 1 (typ.)
Max. Colors	16.7M colors(6 bits + FRC )
Viewing Angle	-89~89 (H) ; -89~ 89 (V)
Touch Screen	P-cap multi touch screen
Active Area	409.8 (H) x 230.4 (V)
Pixel Pitch (mm)	0.3 (H)x 0.3 (V)
System
System Memory	DDR3 So-DIMM 4GB (max. 16GB)
Storage	SATAII HDD 500GB or mSATA SSD 64GB
Audio Codec	Realtek ALC886 HD Audio Codec
BIOS	AMI UEFI BIOS
Ethernet	Intel® Ethernet Controller I211-AT + Intel® Gigabit Ethernet PHY I218-LM
CPU	Intel® Broadwell Core i5® 5200U 2.0 GHz (3M cache, up to 2.7 Ghz)
Graphic	Integrated Intel® HD Graphics
I/O chipset	Fintek F81865
Input / Output
Serial Ports	1 x RS232, 1 x RS232/422/485(default RS232)
USB Ports	1 x USB 2.0, 1 x USB 3.0
Ethernet	2 x RJ45 GbE LAN
VGA	N/A
HDMI	1 x HDMI Output
Power	9~36V DC Input (Phoenix contact connector)
Power Specification
Power Adapter	N/A
Power Consumption	40 W typical, normal operation
Management	VESA DPMS compliant
Power Cord	N/A
Environment Specification
Operating Temperature	-10 deg. C to 50 deg. C
Operating Humidity	10% to 95% (Non Condensing)
IP Level	Front IP65
Storage Temperature	-30 deg. C to 70 deg. C
Vibration	5 Hz ~ 500 Hz/ 1 Grms/ 3 Axis
Shock	15G, 11ms duration
Order Options
Touch	5-Wire resistive touch screen
High brightness	1,000 nits high brightness
VESA Mount Kit	1 x VESA or Pipe Mount kit
