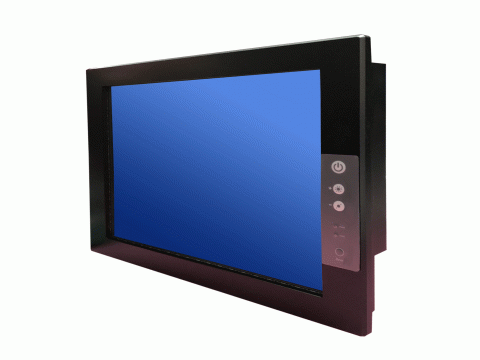

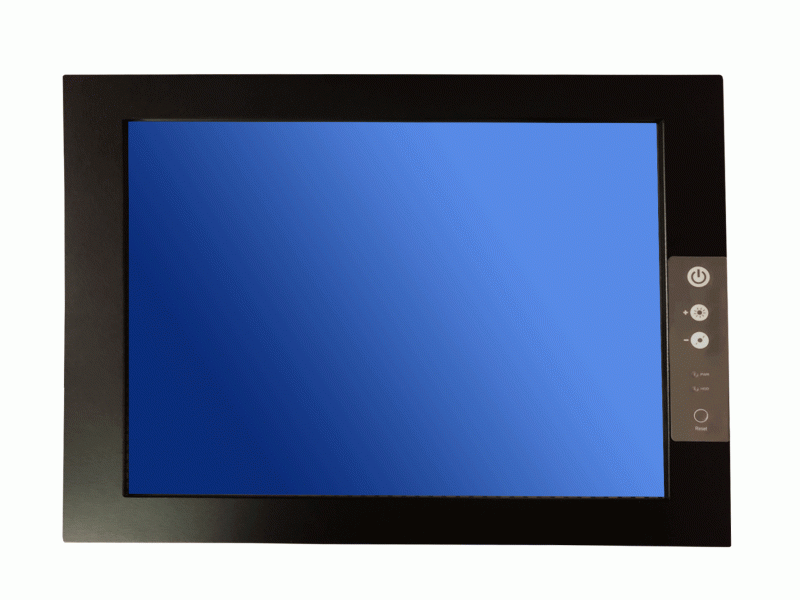

PCH-12RH
12.1“ (4: 3) Panel System (Intel Broadwell Core i5 2.0Ghz)
Product Code:
PCH-12RH
Availability:
In Stock
Call for Price： .
| Document | file size | Download Link |
|---|---|---|
 PCH-12RH |
619.56KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 12.1” (4:3) |
| Resolution | 1024 x 768 |
| Brightness | 500 nits (cd/m2) |
| Contract Ratio | 700 : 1 (typ.) |
| Max. Colors | 16.2M Colors |
| Viewing Angle | -80 ~ 80 (H); -70 ~ 70 (V) |
| Touch Screen | 5-wire resistive touch |
| System | |
| System Memory | DDR3 So-DIMM 4GB (max. 16GB) |
| Storage | SATAIII HDD 500GB or mSATA SSD 64GB |
| Audio Codec | Realtek ALC886 HD Audio Codec |
| BIOS | AMI UEFI BIOS |
| Ethernet | Intel® Ethernet Controller I211-AT + Intel® Gigabit Ethernet PHY I218-LM |
| CPU | Intel® Braodwell Core i5® 5250U 2.0 GHz (up to 2.7 Ghz) |
| Graphic | Integrated Intel® HD Graphics |
| I/O chipset | Fintek Super I/O |
| Input / Output | |
| Serial Ports | 1 x RS232 |
| USB Ports | 2 x USB 3.0 |
| Ethernet | 2 xRJ45 GbE LAN |
| Power | +12 V DC Input (Terminal block) |
| Audio | 1 x HDMI Output |
| Power Specification | |
| Power Consumption | 30 watts (typical) |
| Power Input | 12V DC Input w/external power adapter |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 55 deg. C |
| Operating Humidity | 30% to 90% (Non Condensing) |
| IP Level | IP65 in front |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Net Weight | 5 KG (Identity) |
