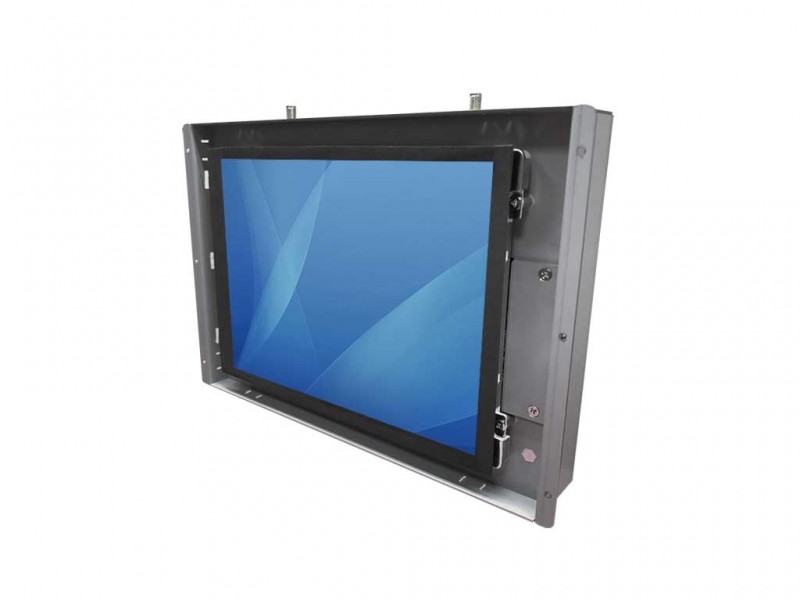

POF-08RP-CP
8.4“ (4:3) Intel Apollolake platform
Product Code:
POF-08RP-CP
Availability:
Pre-Order
•LED Backlight Display
•Intel Apollolake platform
•-10~60degC Operating TemperatureLinux Support
•Resistive or P-cap multi-touch
•LED Backlight Display
•Intel Apollolake platform
•-10~60degC Operating TemperatureLinux Support
•Resistive or P-cap multi-touch
| Document | file size | Download Link |
|---|---|---|
 POF-08RP-CP |
758.76KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 8.4” LCD (LED backlight) |
| Resolution | 800x600 |
| Brightness | 450 nits (cd/m2) (1,000 nits for optional) |
| Contract Ratio | 700 : 1 (typ.) |
| Max. Colors | 16.2M (8 bits/color) |
| Viewing Angle | -80 ~ 80 (H); -60 ~ 75 (V) |
| Touch Screen | 5-wire resistive touch or P-cap multi-touch |
| Active Area | 170.4 (H) x 127.8 (V) |
| Pixel Pitch (mm) | 0.213 (H)x 0.213 (V) |
| System | |
| System Memory | DDR3L So-DIMM 4GB (max. 8GB) |
| Storage | SATAII HDD or mSATA SSD |
| BIOS | AMI 16 MB Flash |
| Battery | UPS spare battery (for optional) |
| Ethernet | Intel® Intel I210-AT |
| CPU | Intel® Apollo Lake N3350 1.83 GHz 1.1GHz |
| Watchdog | 1~255 min/s |
| Graphic | Integrated Intel® HD Graphics |
| Power Input | 12V DC Input (9~36V DC or AC for optional) |
| Input / Output | |
| Serial Ports | 1 x RS23 |
| USB Ports | 2 x USB 3.0 , 2 x USB 2.0 |
| Ethernet | 2 x RJ45 GbE LAN |
| VGA | 1 x VGA output |
| HDMI | 1 x HDMI output |
| Power | 1 x Terminal block (DC input) |
| Audio | N/A |
| Power Specification | |
| Power Adapter | AC/DC Power adapter (12V DC input) |
| Power Consumption | 20W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Provided by region |
| Environment Specification | |
| Operating Temperature | -10 deg. C to 60 deg. C |
| Operating Humidity | 10% to 95% (Non Condensing) |
| Storage Temperature | -30 deg. C to 70 deg. C |
| Order Options | |
| OS | Windows 10 |
| Wireless LAN | 802.11 b/g/n/ac |
| Touch Screen | 5-wire resistive or P-cap multi-touch |
| Battery | UPS Battery integrated |
