FIP-15R

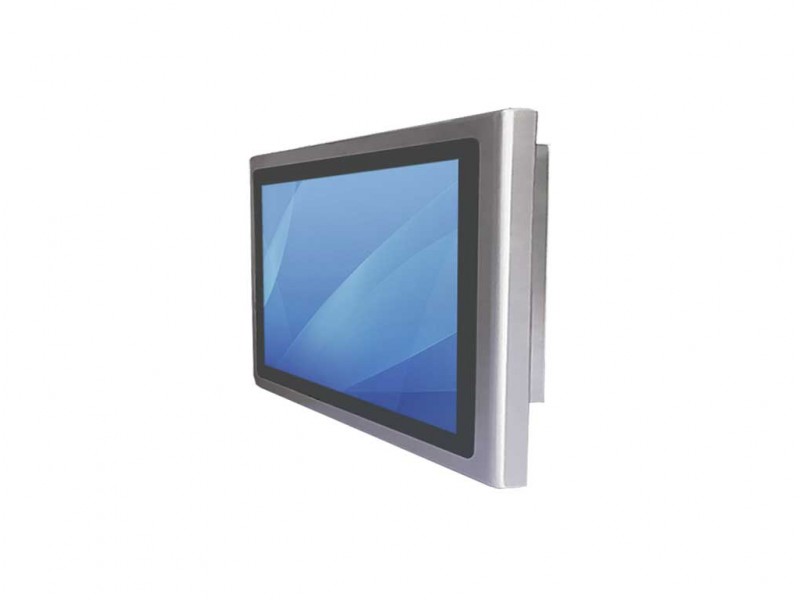

15" Full-IP67/ IP69K Stainless Steel LCD
Product Code:
FIP-15R
Availability:
Pre-Order
•IP67/ IP69K
•Anti-Corrosion Stainless Housing Design
•High Brightness: 1,000 nits for optional
•Slim & Curve Edge
•IP67/ IP69K
•Anti-Corrosion Stainless Housing Design
•High Brightness: 1,000 nits for optional
•Slim & Curve Edge
| Document | file size | Download Link |
|---|---|---|
 FIP-15R |
763.39KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 15” TFT LCD |
| Resolution | 1024 x 768 |
| Brightness | 250 nits (cd/m2) |
| Contract Ratio | 500 : 1 (typ.) |
| Max. Colors | 16.2M (6bits+ FRC) |
| Viewing Angle | -70~70 (H) ; -60~60 (V) |
| Touch Screen | 5-wire resistive touch (default) |
| System | |
| Mounting Type | 100 x100 VESA Mount |
| Housing Material | Anti-corrosion stainless steel with deactivated coating |
| Color | Sliver Color (Others by request) |
| Input / Output | |
| USB Ports | USB for touch screen |
| Video | VGA (or DVI) |
| Power | AC 110~240V, Universal, ±10% |
| Power Specification | |
| Power Adapter | N/A |
| Power Consumption | 40W typ |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 50 deg. C |
| Operating Humidity | 10% to 95% (Non Condensing) |
| IP Level | Full IP67/ IP69K |
| Storage Temperature | -30 deg. C to 80 deg. C |
| Vibration | MIL-STD-810G Method 514.6C-3 |
| Shock | MIL-STD-810G Method 516.6 |
| Dimensions and Weight | |
| Weight | 7.5 KG (Identity) |
| OSD | |
| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position, Auto adjustment, Factory Settings |
| Order Options | |
| Touch | P-cap touch screen(Optional) |
| High brightness | 1000 cd/m2 (Optional) |
| Optical bonding | By request |
| Power Input | 9~36V DC Input (Optional) |
•IP67/ IP69K
•Anti-Corrosion Stainless Housing Design
•High Brightness: 1,000 nits for optional
•Slim & Curve Edge
