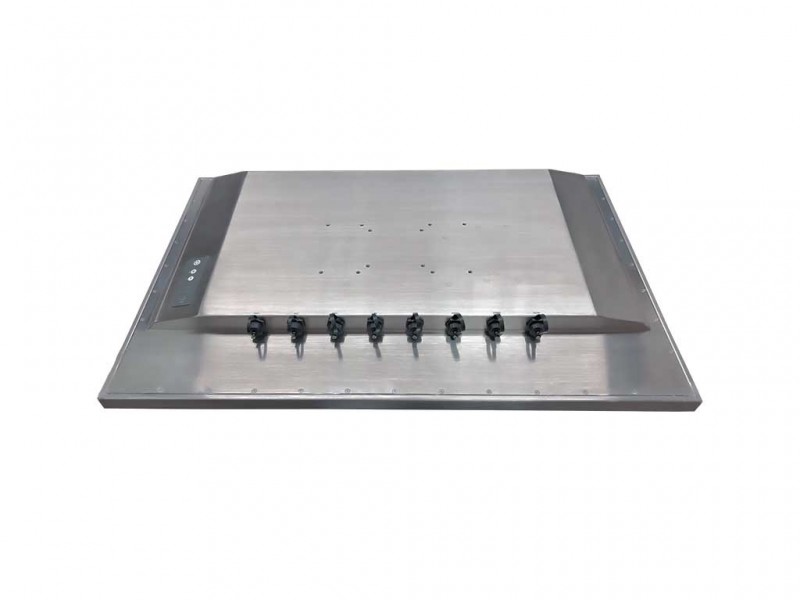

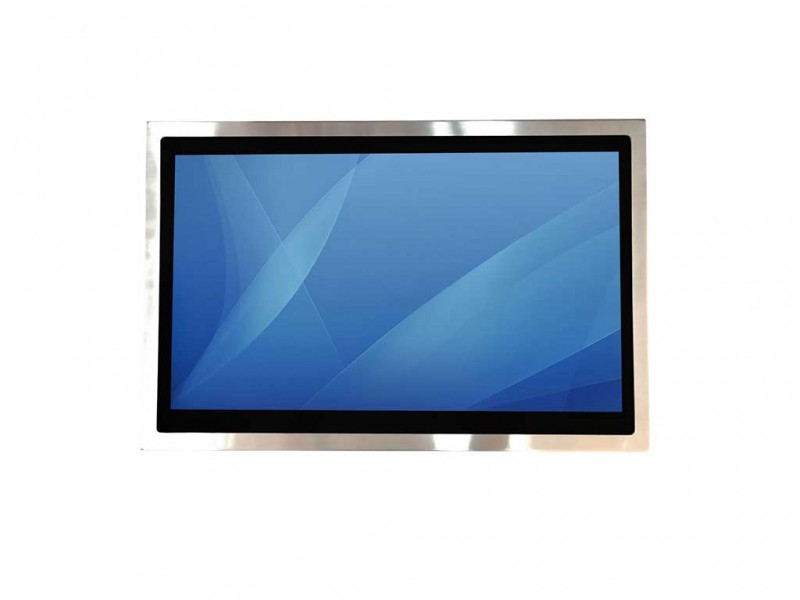

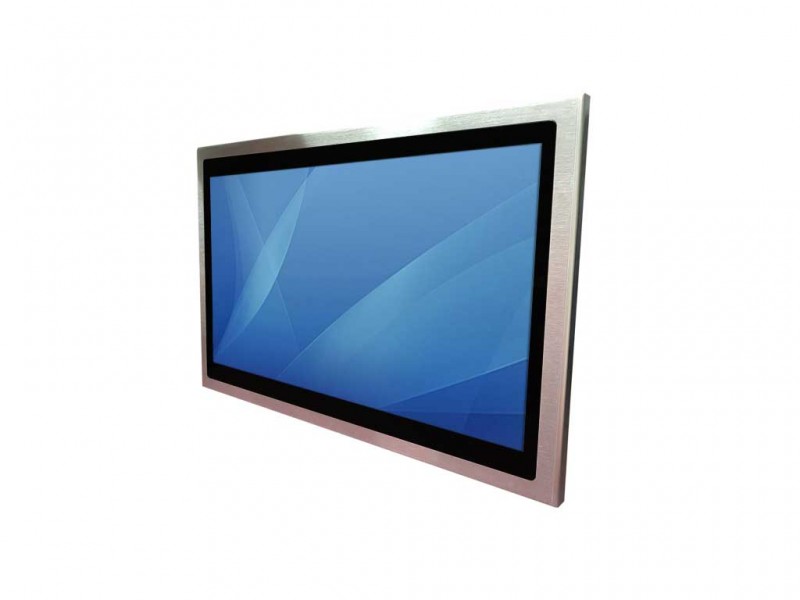

FIP-27WBS

27" Stainless Full IP66 / IP69K Panel PC (Intel Baytrail N2930 platform)

Product Code: FIP-27WBS

Availability: Pre-Order

•Intel® Baytrail N2930 1.83GHz

•Anti-Corrosion Stainless SUS316 with Deactivated Coating

•Elegantly Slim, round edge, no sharp angle

•Intel® Baytrail N2930 1.83GHz

•Anti-Corrosion Stainless SUS316 with Deactivated Coating

•Elegantly Slim, round edge, no sharp angle

Document	file size	Download Link
FIP-27WBS	866.45KB	Download

Panel Specification
Size/ Type	27” LCD (LED backlight)
Resolution	1920 x 1080 @ 60Hz
Brightness	300 nits (cd/m2)
Contract Ratio	3000 : 1 (typ.)
Max. Colors	16.7M colors
Viewing Angle	-89 ~ 89 (H); -89 ~ 89 (V)
Active Area	597.6 (H) x 336.15 (V)
Pixel Pitch (mm)	0.31125 (H)x 0.31125 (V)
System
System Memory	DDR3 So-DIMM 4GB (max. 8GB)
Storage	SATAII HDD 500GB or mSATA SSD 64GB
BIOS	AMI 16MB Flash
Ethernet	Intel® Intel WG82574L GbE
CPU	Intel® Bay Trail Celeron® N2930 1.83 GHz
Graphic	Integrated Intel® HD Graphics
Wireless	WiFi 802.11 b/g/n, BT 4.0 (For optional)
Input / Output
Serial Ports	2 x RS232 (IP66)
USB Ports	2 x USB (IP66)
Ethernet	2 x RJ45 GbE LAN (IP66)
Power	AC 110~240V, Universal, ±10%(IP66 connector)
Power Specification
Power Adapter	N/A
Power Consumption	55W (typ.)
Environment Specification
Operating Temperature	-10 deg. C to 55 deg. C
Operating Humidity	10% to 95% (Non Condensing)
IP Level	Full- IP66/ IP69K
Order Options
High brightness	1000 cd/m2 (Optional)
OS	Windows 7 Professional(Optional)
Power Input	9~36V DC Input (Optional)
Platform	Intel® Haswell Core i5 (Optional)
Custom I/O	By request

•Intel® Baytrail N2930 1.83GHz

•Anti-Corrosion Stainless with Deactivated Coating

•Elegantly Slim, round edge, no sharp angle
