FIP-22WKS

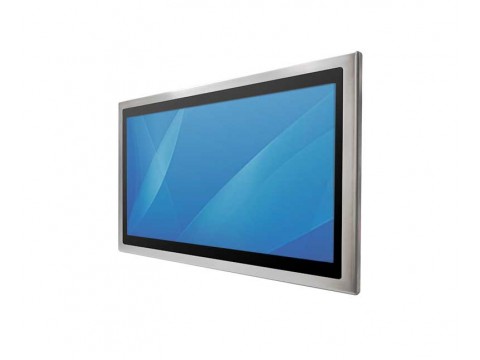

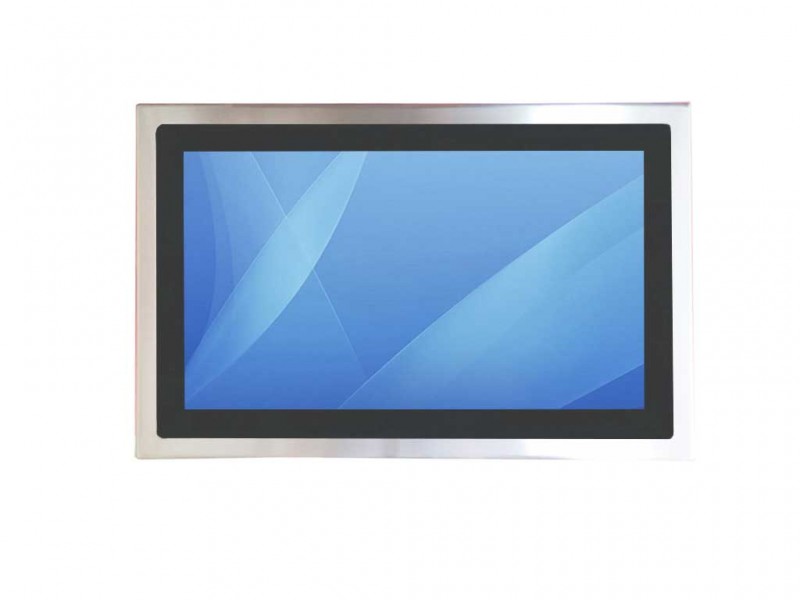

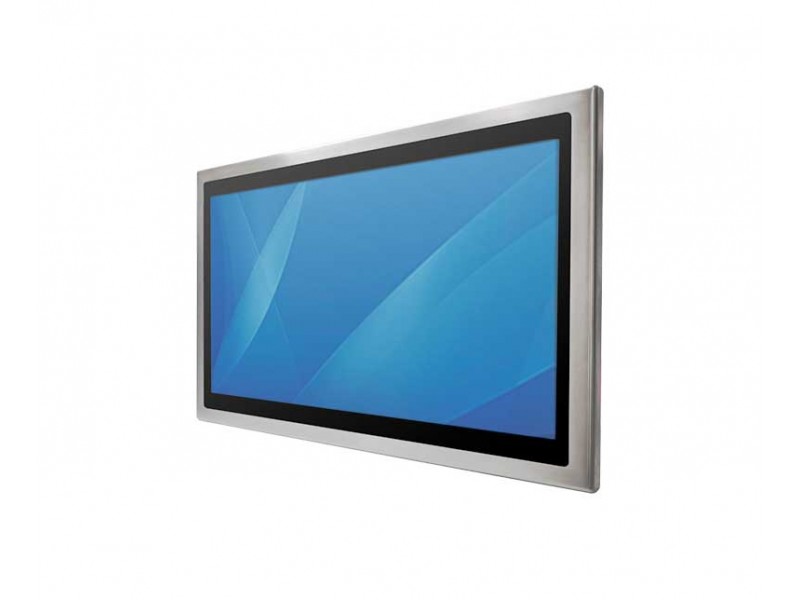

21.5" Stainless Full IP66/IP69K (Intel Core i5-7200U platform)
Product Code:
FIP-22WKS
Availability:
Pre-Order
•Intel® Kabylake Core i5- 7200U CPU
•Anti-Corrosion Stainless steel SUS316 with Deactivated Coating
•Elegant, Slim, Round edge Design without sharp angle
•P-cap multi-touch
•Intel® Kabylake Core i5- 7200U CPU
•Anti-Corrosion Stainless steel SUS316 with Deactivated Coating
•Elegant, Slim, Round edge Design without sharp angle
•P-cap multi-touch
| Document | file size | Download Link |
|---|---|---|
 FIP-22WKS |
755.13KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 21.5” TFT LCD |
| Resolution | 1920 x 1080 |
| Brightness | 300 nits (cd/m2) |
| Contract Ratio | 1000 : 1 (typ.) |
| Max. Colors | 16.7 M (8bits/color) |
| Viewing Angle | -85~85 (H) ; -80~80 (V) |
| Touch Screen | P-cap touch screen or 5-wire resistive touch |
| System | |
| System Chipsets | SoC Integrated |
| System Memory | DDR4L 1866/2133 MHz 8GB(Up to 16GB) |
| Storage | 1 x mSATA SSD or 2.5“ SSD |
| BIOS | AMI 16Mbit Flash |
| WiFi | 802.11 b/g/n/ac (optional) |
| Ethernet | Intel® i210-AT Ethernet Controller Intel® i219-LM Ethernet Connection |
| CPU | Intel® Kabylake U-series 7th Generation Core i5-7300U 2.6 GHz |
| Watchdog | Programmable 1~255 sec. |
| Graphic | Intel® Gen 9 integrated HD Graphics |
| System Indicator | 1 x Power LED, 1 x HDD LED |
| Power Input | AC Input |
| Real Time Clock | Chipset integrated RTC with onboard lithium battery |
| I/O chipset | Nuvoton NCT6106D |

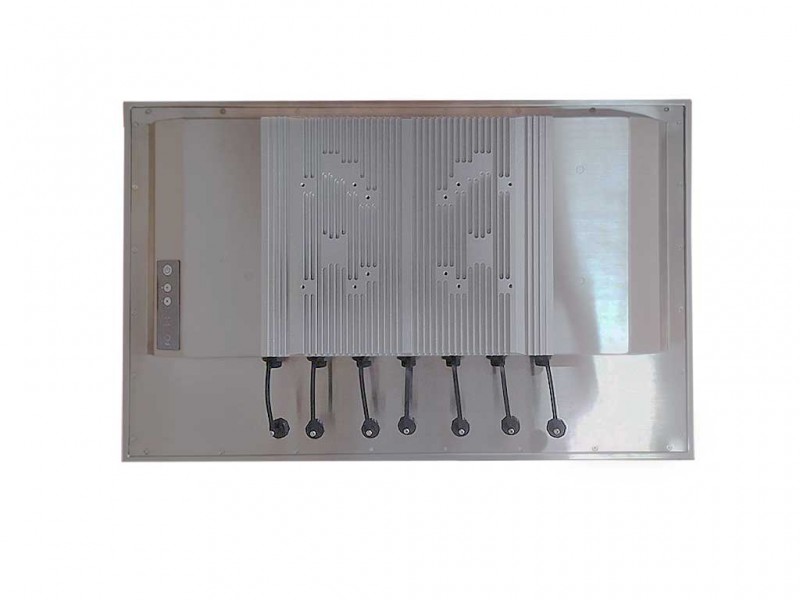

| Input / Output | |
| Serial Ports | 1 x RS232 (IP67 connector) |
| USB Ports | 2 x USB (IP67 connector) |
| Ethernet | 1 x RJ45 GbE LAN (IP67 connector) |
| Power | AC 110~240V, Universal, ±10%(IP67 connector) |
| Power Specification | |
| Power Adapter | N/A |
| Power Consumption | 50W (typ.) |
| Environment Specification | |
| Operating Temperature | -10 deg. C to 55 deg. C |
| Operating Humidity | 10% to 95% (Non Condensing) |
| IP Level | Full- IP67 |
| Order Options | |
| High brightness | 1000 cd/m2 (Optional) |
| OS | Windows 10 IOT Enterprise |
| Power Input | 9~36V DC Input (Optional) |
| Platform | Intel® Haswell Core i5(Optional) |
| Custom I/O | By request |
•Intel® Kabylake Core i7- 7300U 2.6GHz
•Anti-Corrosion Stainless with Deactivated Coating
•Elegant, Slim, Round edge Design without sharp angle
