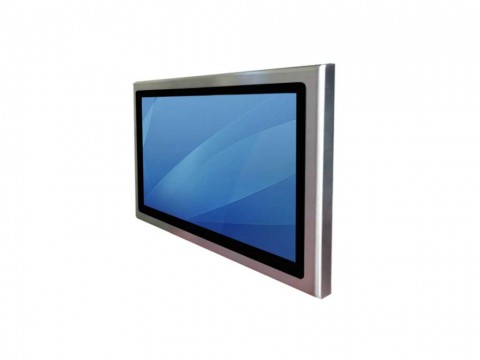

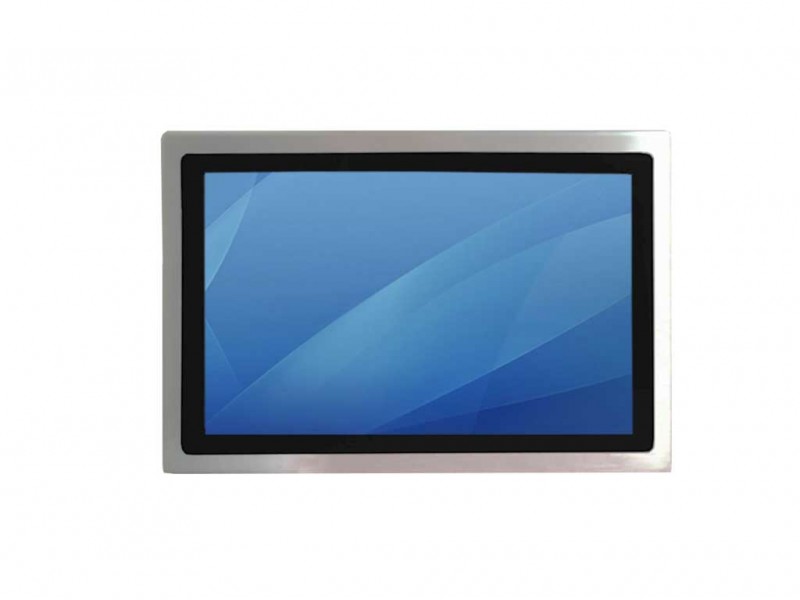

FIP-15WPS

15.6" Stainless Full-IP66/IP69K (Intel Apollolake Platform)

Product Code: FIP-15WPS

Availability: Pre-Order

•Ultra Low Power Intel Apollolake

•Anti-Corrosion SUS316 Stainless Housing Design

•Full-IP66 /IP69K Protection

•Ultra Low Power Intel Apollolake

•Anti-Corrosion SUS316 Stainless Housing Design

•Full-IP66 /IP69K Protection

Document	file size	Download Link
FIP-15WPS	742.43KB	Download

Panel Specification
Size/ Type	15.6” (16:9) LED backlight
Resolution	1920 x 1080 @ 60Hz
Brightness	400 nits (cd/m2)
Contract Ratio	5000 : 1 (typ.)
Max. Colors	16.7M colors(6 bits )
Viewing Angle	-89 ~ 89 (H); -89 ~ 89 (V)
Touch Screen	Either P-cap multi touch or 5-wire resistive
Active Area	344 (H) x 194 (V)
Pixel Pitch (mm)	0.3 (H)x 0.3 (V)
System
System Memory	DDR3L So-DIMM 4GB (max. 8GB)
Storage	SATAII HDD or mSATA SSD
Audio Codec	Realtek ALC262 HD Audio Codec
BIOS	AMI 16MB Flash
OS Support	Windows / Linux Supported
WiFi	802.11 b/g/n (optional)
Ethernet	Intel® Intel I210-AT
CPU	Intel® Apollo Lake N3350 1.83 GHz 1.1GHz
Watchdog	1~255 min/s
Graphic	Integrated Intel® HD Graphics
Input / Output
Serial Ports	1 x RS232 (IP66 connectors)
USB Ports	2 x USB 2.0 (IP66 connectors)
Ethernet	1 x RJ45 GbE LAN (IP66 connectors)
Power Input	AC Input (IP66 connector)
Power Specification
Power Adapter	N/A
Power Consumption	30W (typ.)
Environment Specification
Operating Temperature	-10 deg. C to 60 deg. C
Operating Humidity	10% to 95% (Non Condensing)
IP Level	Full- IP66/ IP69K
Storage Temperature	-30 deg. C to 70 deg. C
OSD
Buttons	1 Button for touch On/Off
Order Options
High brightness	1,000 nits (Optional)
Power Input	Wide range DC Input (Optional)
Custom I/O	Assigned I/O function (Optional)
Touch Screen	5-wire resistive touch screen (Optional)
Buttons
Rear button	1x Power On/Off, 1 x Reset,1 x Brightness Up/Down,1x Touch On/Off
