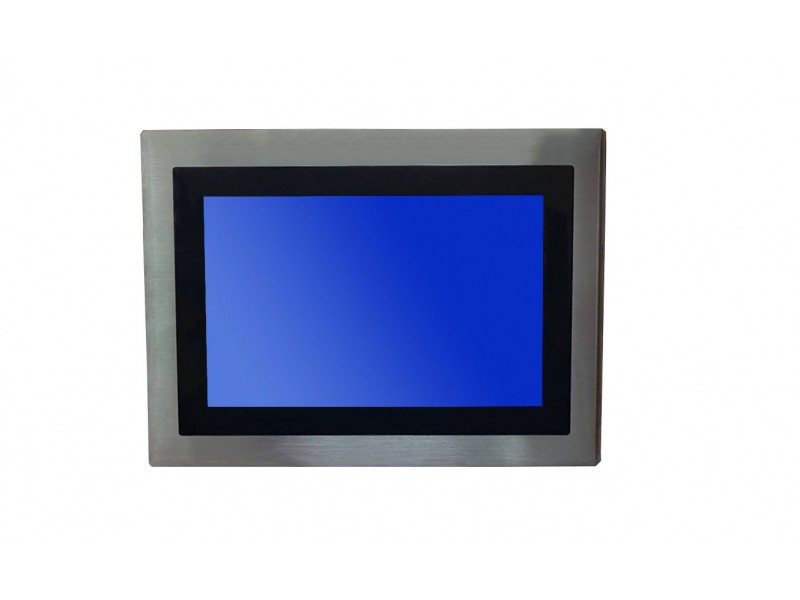

FIP-10W
10.1” IP proof monitor
Product Code:
FIP-10W
Availability:
In Stock
Call for Price： .
| Document | file size | Download Link |
|---|---|---|
 FIP-10W |
376.7KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 10.1” LCD |
| Resolution | 1280 x 800 @ 60Hz, 75Hz |
| Brightness | 350 nits (cd/m2) |
| Contract Ratio | 800 : 1 (typ.) |
| Max. Colors | 16.7M Colors |
| Viewing Angle | -85~ 85 (H); -85~ 85 (V) |
| Touch Screen | P-cap multi-touch (USB) |
| Active Area | 200.416 (H) x 129.15 (V) |
| Pixel Pitch (mm) | 0.2125(H) x 0.21525(V) |
| System | |
| Mounting Type | 75x 75 VESA Mount. Panel mount for optional |
| Housing Material | Stainless Steel SUS 304 |
| Hardness | Vandal Proof with optical bonding |
| Connector | Full-IP66 Circular connectors |
| Input / Output | |
| USB Ports | 1 x USB for touch (M12 connector) |
| VGA | 1 x VGA (M12 connector) |
| DVI | N/A |
| HDMI | 1 x HDMI (IP66 HDMI connector) |
| Video | N/A |
| Power Input | 1 x 12V DC input (M12 connector) |
| Power Specification | |
| Power Adapter | 1 x AC/DC power adapter |
| Power Consumption | 15W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | 1 x 1.5m power cord (Type provided by region) |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 50 deg. C |
| Operating Humidity | 30~90% non-condensing |
| IP Level | Full-IP66/IP69K |
| Storage Temperature | -30 deg. C to 70 deg. C |
| OSD | |
| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position,Auto-adjustment, Factory Settings |
