LCH-55W-IP54

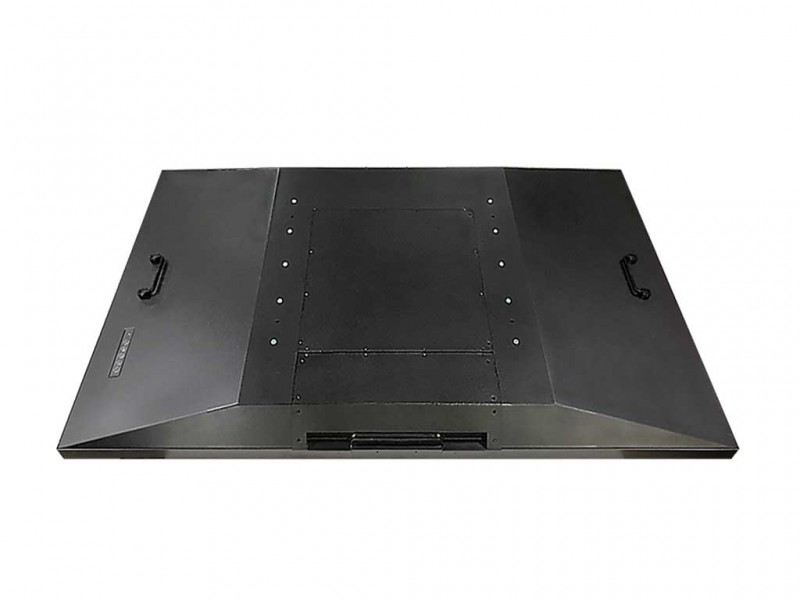

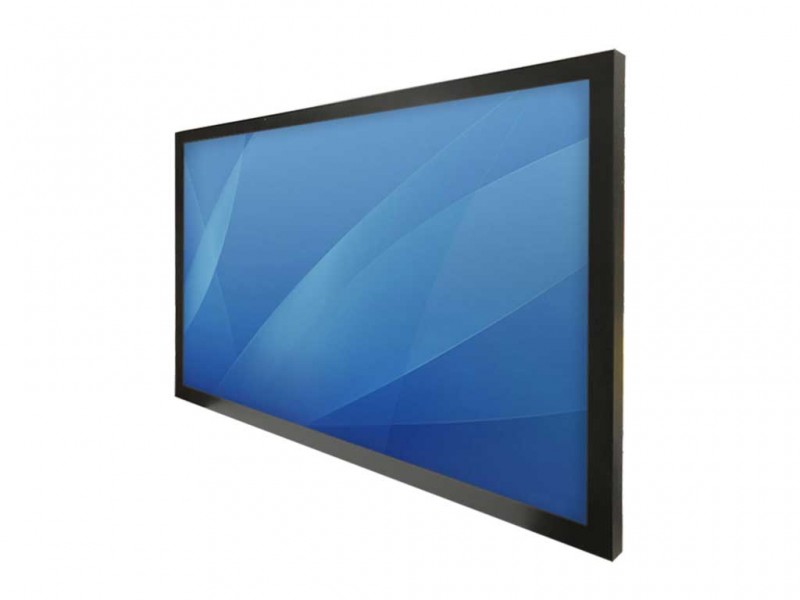

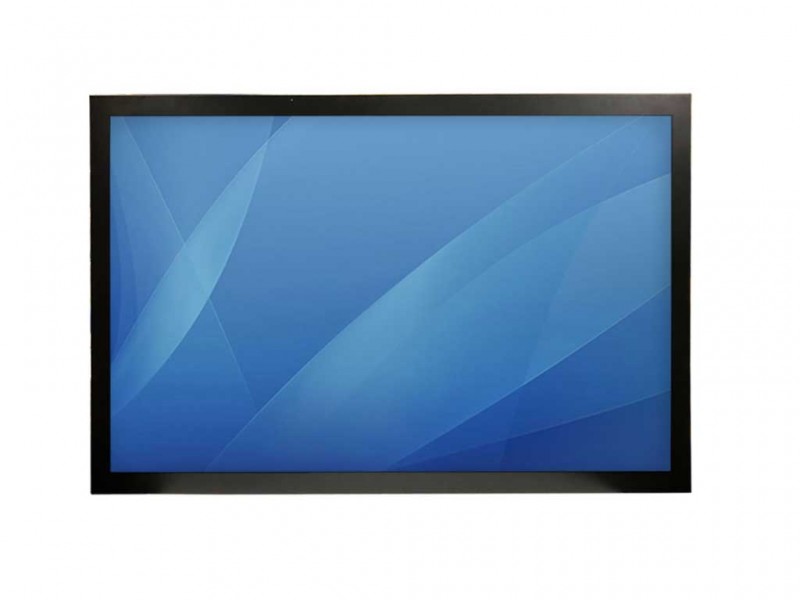

55” LCD (LED backlight) Monitor for Multiple Applications
Product Code:
LCH-55W-IP54
Availability:
Pre-Order
- 55” Full-HD LCD Display
- Full-IP54, I/O with protection lid & rubber
- P-cap touch or AR glass is either one
- 55” Full-HD LCD Display
- Full-IP54, I/O with protection lid & rubber
- P-cap touch or AR glass is either one
| Document | file size | Download Link |
|---|---|---|
 LCH-55W-IP54 |
610.76KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 55” LCD (LED backlight) |
| Resolution | 1920 x 1080 @ 60Hz |
| Brightness | 450 nits (cd/m2) |
| Contract Ratio | 5000 : 1 (typ.) |
| Max. Colors | 1073.7M colors |
| Viewing Angle | -89 ~ 89 (H); -89 ~ 89 (V) |
| Active Area | 1209.6(H) x 680.4(V) |
| Pixel Pitch (mm) | 0.63 (H)x 0.63 (V) |
| System | |
| Housing Material | Fully aluminum enclosure |
| I/O protection | I/O protective cover for dust proof |
| I/O cable collection | I/O rubber for strain relief |
| Input / Output | |
| VGA | 1 x VGA D-Sub 15 pin |
| DVI | 1 x DVI-I input |
| HDMI | 1 x HDMI input (Optional) |
| Video | S-Video, Composite (optional) |
| Power Input | 1 x AC input |
| COM | 1 x RS232 for remote control (optional) |
| Power Specification | |
| Power Adapter | N/A |
| Power Consumption | 330 W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Provided by region |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 45 deg. C |
| Operating Humidity | 10~90%RH (Non-condensing) |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Water/Dust proof | Full- IP54 |
| OSD | |
| OSD Input | 5-key OSD buttons |
| OSD Function | Contrast, Color, Position,Auto-adjustment, Factory Settings |
