PCH-32WK

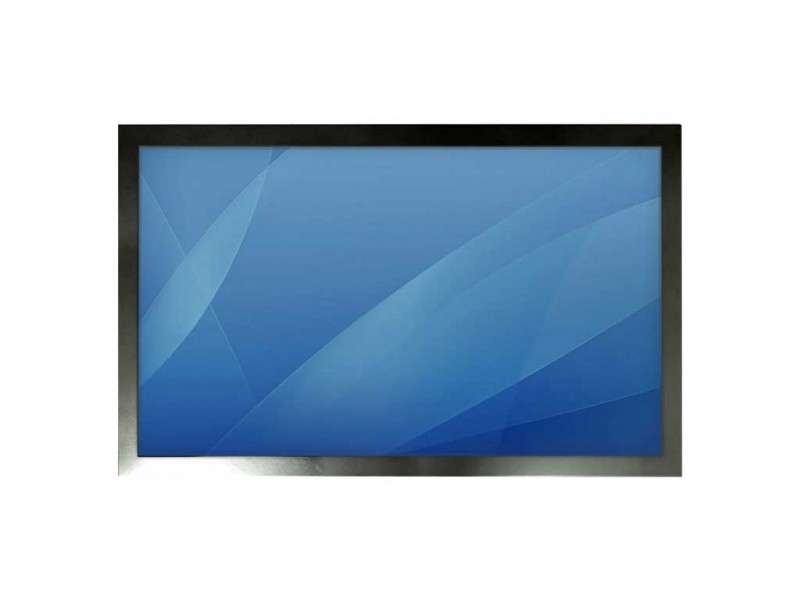

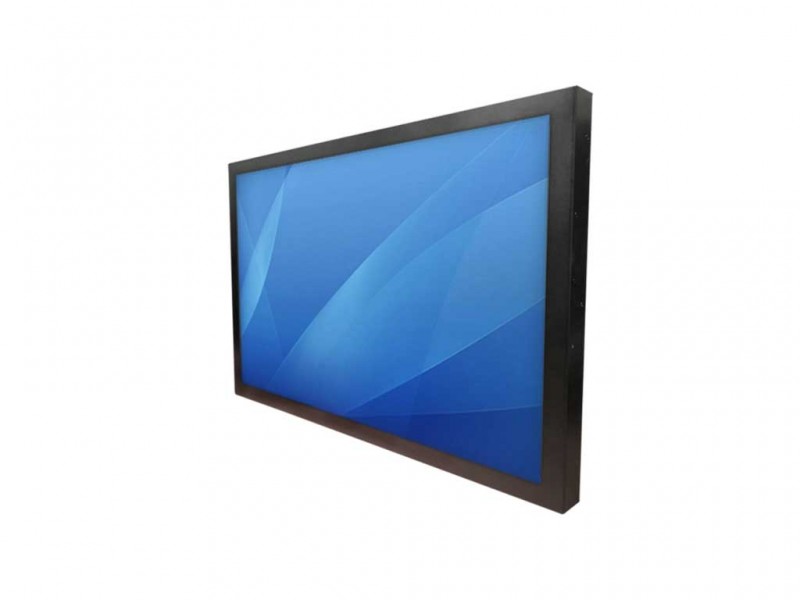

32” LCD (LED backlight) Panel PC w/Intel Kabylake platform
Product Code:
PCH-32WK
Availability:
Pre-Order
| Document | file size | Download Link |
|---|---|---|
 PCH-32WK |
550.83KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 32” LCD (LED backlight) |
| Resolution | 1920 x 1080 @ 60Hz |
| Brightness | 450 nits (cd/m2) |
| Contract Ratio | 3000 : 1 (typ.) |
| Max. Colors | 16.7M colors |
| Viewing Angle | -89 ~ 89 (H); -89 ~ 89 (V) |
| Active Area | 698.4 (H) x 392.85 (V) |
| Pixel Pitch (mm) | 0.3638 (H)x 0.3638 (V) |
| System | |
| System Chipsets | SoC Integrated |
| System Memory | DDR4L 1866/2133 MHz 8GB (Up to 16GB) |
| Storage | 1 x mSATA SSD up to 500GHz |
| BIOS | AMI 16Mbit Flash |
| WiFi | 802.11ac dual band (optional) |
| Ethernet | Intel® i210-AT Ethernet Controller , Intel® i219-LM Ethernet Connection |
| CPU | Intel® Kabylake U-series 7th Generation Core i5-7300U 2.6GHz |
| Watchdog | Programmable 1~255 sec. |
| Graphic | Intel® Gen 9 integrated HD Graphics |
| System Indicator | 1 x Power LED, 1 x HDD LED |
| Real Time Clock | Chipset integrated RTC with onboard lithium battery |
| Intel vPro | Intel vPro® Platform Eligibility supported |
| PXE | Ipv4 /Ipv6 PXE boot supported |
| Input / Output | |
| USB Ports | 2 x USB3.0 , 2 x USB2.0 |
| HDMI | 1x HDMI Output |
| Power | 1 x AC power input (C14/C15) |
| COM | 1 x RS232 (D-Sub 9 Pin) |
| LAN | 2 x RJ45 GbE Ethernet |
| Power Specification | |
| Power Adapter | N/A (AC Input) |
| Power Consumption | 200 W typical, normal operation |
| Management | VESA DPMS compliant |
| Power Cord | Provided by region |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 45 deg. C |
| Storage Temperature | -20 deg. C to 70 deg. C |
| Water/Dust proof | Front IP65 |
| Order Options | |
| Touch | P-cap Multi-touch (optional) |
| Buttons | |
| Rear button | 1x Power , 1 x Reset |
