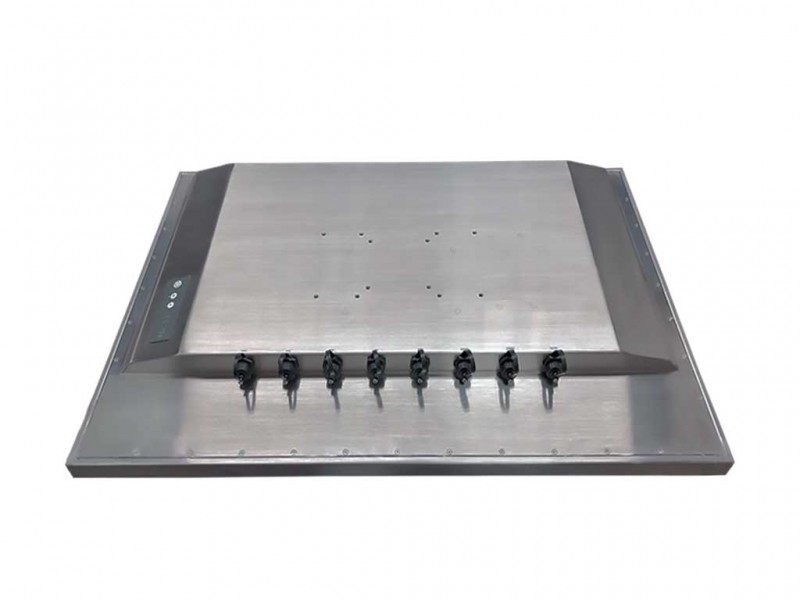

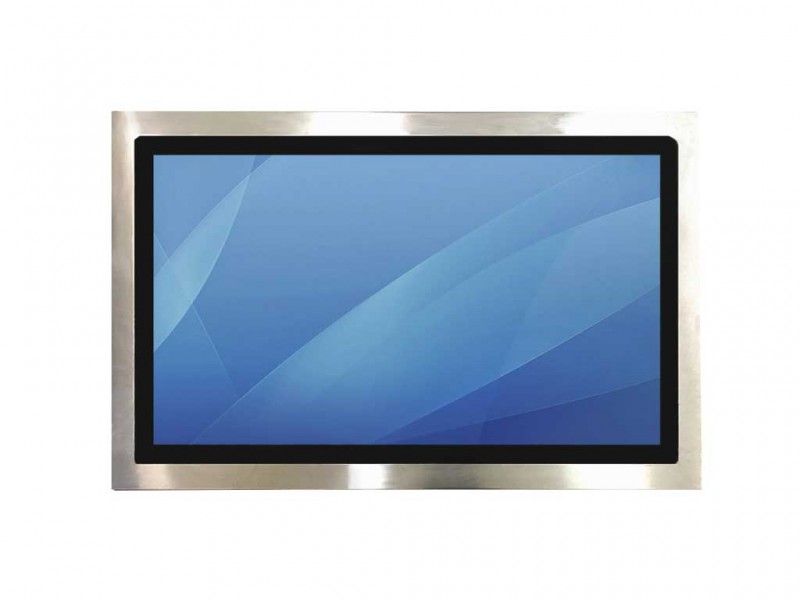

FIP-32WHS

32" Stainless Full IP66 / IP69K Panel PC (Intel Broadwell Core i5 5250U platform)

Product Code: FIP-32WHS

Availability: Pre-Order

•Intel® Broadwell Core i5 5250U

•Full IP66/ IP69K

•0 ~ 50degC Operating Temperature

•Anti-corrosion SUS316 stainless steel

•Intel® Broadwell Core i5 5250U

•Full IP66/ IP69K

•0 ~ 50degC Operating Temperature

•Anti-corrosion SUS316 stainless steel

Document	file size	Download Link
FIP-32WHS	762.6KB	Download

Panel Specification
Size/ Type	32” LCD (LED backlight)
Resolution	1920 x 1080 @ 60Hz
Brightness	500 nits (cd/m2)
Contract Ratio	3000 : 1 (typ.)
Max. Colors	16.7M colors
Viewing Angle	-89 ~ 89 (H); -89 ~ 89 (V)
Touch Screen	P-cap multi-touch (for optional)
Glass	AR protective glass
Active Area	698.4 (H) x 392.85 (V)
Pixel Pitch (mm)	0.3638 (H)x 0.3638 (V)
System
System Memory	DDR3 So-DIMM 4GB (max. 8GB)
Storage	SATAII HDD 500GB or mSATA SSD 64GB
BIOS	AMI 16MB Flash
Mounting Type	200x100, 400x100 VESA mounting thread
Housing Material	Stainless steel SUS316
Ethernet	Intel® Ethernet Controller I211-AT +Intel® Gigabit Ethernet PHY I218-LM
CPU	Intel® 5th Gen. Broadwell Core i5 5250U 2.2 GHz(Max. up to 2.7GHz)
Graphic	Integrated Intel® HD Graphics
Wireless	WiFi 802.11 b/g/n, BT 4.0 (For optional)
Input / Output
Serial Ports	2 x RS232 (IP65)
USB Ports	2 x USB (IP65)
Ethernet	2 x RJ45 GbE LAN (IP65)
Power	AC 110~240V, Universal, ±10% (IP65)
Power Specification
Power Adapter	N/A
Power Consumption	110W (typ.)
Environment Specification
Operating Temperature	0 deg. C to 50 deg. C
Operating Humidity	10% to 95% (Non Condensing)
IP Level	Full- IP67, NEMA6
Order Options
High brightness	1,000 cd/m2 (Optional)
OS	Windows 7, Win10 IOT
Platform	Intel® Baytrail / Apollolake platform(Optional)
Custom I/O	By request

•Intel® Haswell Core i5 5250U

•Full IP67/ IP69K

•0 ~ 50degC Operating Temperature

•Anti-corrosion SUS316 stainless steel
