LOF-22W

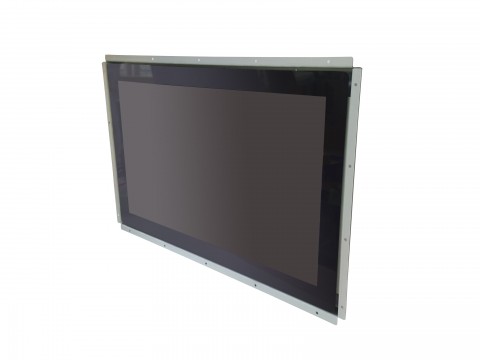

21.5" Open Frame Monitor
Product Code:
LOF-22W
Availability:
Pre-Order
- 21.5", 1920x1080
- P-cap multi-touch
- VGA / DVI
- 1 x AC input
Call for Price： .
- 21.5", 1920x1080
- P-cap multi-touch
- VGA / DVI
- 1 x AC input
| Document | file size | Download Link |
|---|---|---|
 LOF-22W |
510.94KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 21.5 Inch |
| Resolution | 1920 x 1080 |
| Brightness | 250 nits |
| Contract Ratio | 1000 : 1 |
| Max. Colors | 16.7M (8 bits/colors) |
| Viewing Angle | -85~ 85 (H); -80~ 80 (V) |
| Touch Screen | P-cap 10-point multi touch |
| Active Area | |
| System | |
| Mounting Type | VESA Mount, Rear Mount |
| Input / Output | |
| USB Ports | 1 x USB for touch screen |
| VGA | 1 x VGA D-Sub 15 pin |
| DVI | 1 x DVI-D |
| Power Specification | |
| Power Adapter | N/A |
| Power Input | AC Input |
| Environment Specification | |
| Operating Temperature | 0 deg. C to 45 deg. C |
| Operating Humidity | 10~90% |
| Storage Temperature | -15 deg. C to 70 deg. C |
P-cap 10-point multi touch (USB)
21.5" 1920x1080, 250nits Display
VGA / DVI Input
Open Frame Housing
1. 21.5", 1920x1080 resolution, 1,000 nits in brightness
2. Other Input: Video / HDMI / DP
3. 5-wire resistive touch
4. 12V DC Input with AC/DC power adapter
