LRK-19RK 19” RackMount Computer (Intel 8th Core i Whisky lake platform).. Product #: LRK-19WK Pre-Order

LRK-19RK

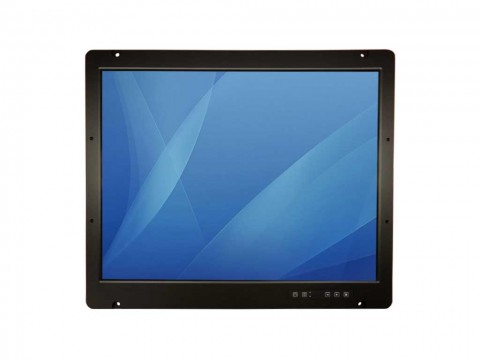

19” RackMount Computer (Intel 8th Core i Whisky lake platform)
Product Code: LRK-19WK
Availability: Pre-Order
Document file size Download Link
LRK-19RK 599.9KB Download
Panel Specification
Size/ Type 19” (5:4) (LED Backlight)
Resolution 1280 x 1024
Brightness 350 nits
Contract Ratio 1000 : 1(typ.)
Max. Colors 16.7M
Viewing Angle -85~ 85 (H); -80~ 80 (V)
Touch Screen Anti-EMI 5-wire resistive touch
System
System Chipsets Intel® 300 Series (SoC Integrated)
System Memory DDR4-2400 So-DIMM 16GB (max. 32GB)
Storage SSD 128GB
BIOS AMI UEFI 256 Mbit
Mounting Type 100x 100, 200x 100 VESA Mount
Ethernet Intel® Gigabit Ethernet Controller I210-+Intel® Gigabit Ethernet PHY I219
Cooling system Fanless
CPU Intel® WhiskyLake Core i7®-8665UE, up to 4.4 GHz (8MB cache, 4 Cores/ 8Threads)
Watchdog 1 – 255sec. programmable
Graphic Integrated Intel® UHD Graphics 620
Graphic Intel® UHD graphics 620 (Max. up to 1.15GHz) (3D Acc.: Direct3D 2015, OpenGL4.5, OpenCL2.1 HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9, VP8, WMV9, MPEG2 HW Encode: HEVC/H/264, AVC/H/264, VP9, VP8,MPEG2)
System Indicator 1 x Power LED, 1 x HDD LED
Power Input 110-230V 60Hz single phase AC Power Input
OSD Control 1x Power On/Off, 1 x Reset, 1x Brightness Up, 1x Brightness Down,1x Touch On/Off
Input / Output

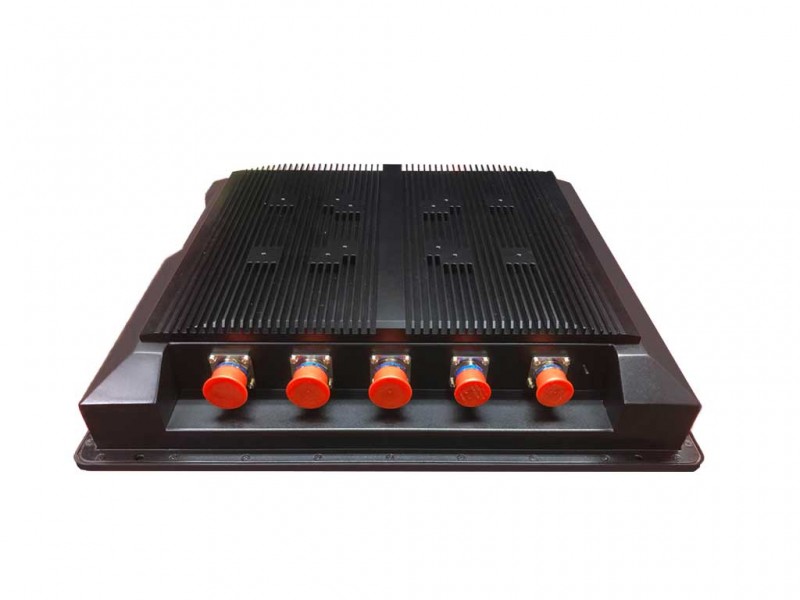

Serial Ports 1x RS232/422/485(Default in RS232 w/D38999 connector)
USB Ports 2 x USB 2.0 (D38999 Connector)
Ethernet 2 x GbE Ethernet (D38999 Connector)
VGA N/A
HDMI 1x HDMI output
Power 110~240V AC Input (D38999 Connector)
Environment Specification
Operating Temperature 0 deg. C to 55 deg. C
Operating Humidity 10 to 95% (Non Condensing)
IP Level Full-IP65
Storage Temperature -30 deg. C to 70 deg. C
Vibration MIL-STD-810G Method 514.6C-3
Shock MIL-STD-810G Method 516.6
EMI/EMC MIL-STD-461F
Dimensions and Weight
Dimensions 429 x 382 x 80 mm (+/-2mm)(2x handles are not included)
Weight 11 KG +/- 0.5KG
OSD
LED Indicators 1 x Power On/Off, 1 x HDD LED
