LRK-19R-1U 19” LCD (LED Backlit), 1U Rack Mount Drawer.. Product #: LRK-19R-1U In Stock

LRK-19R-1U

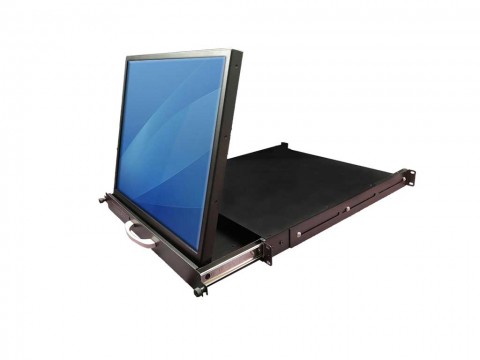

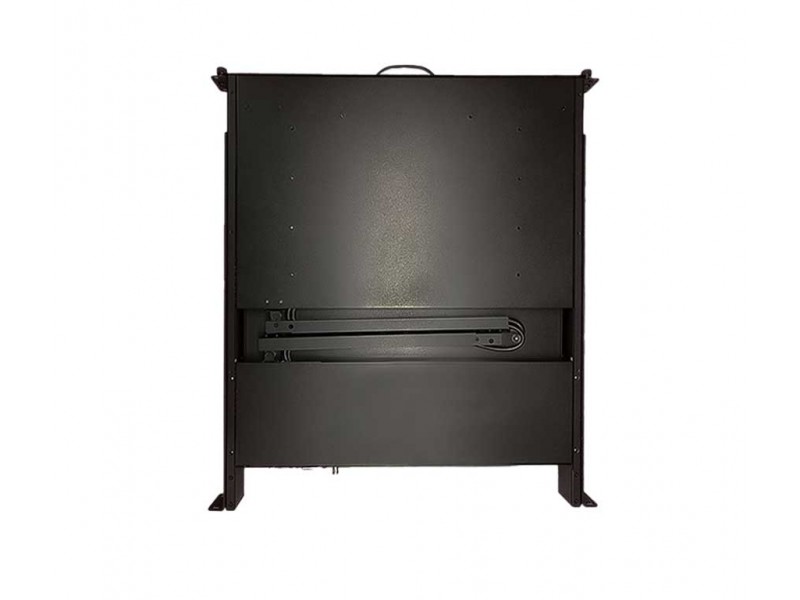

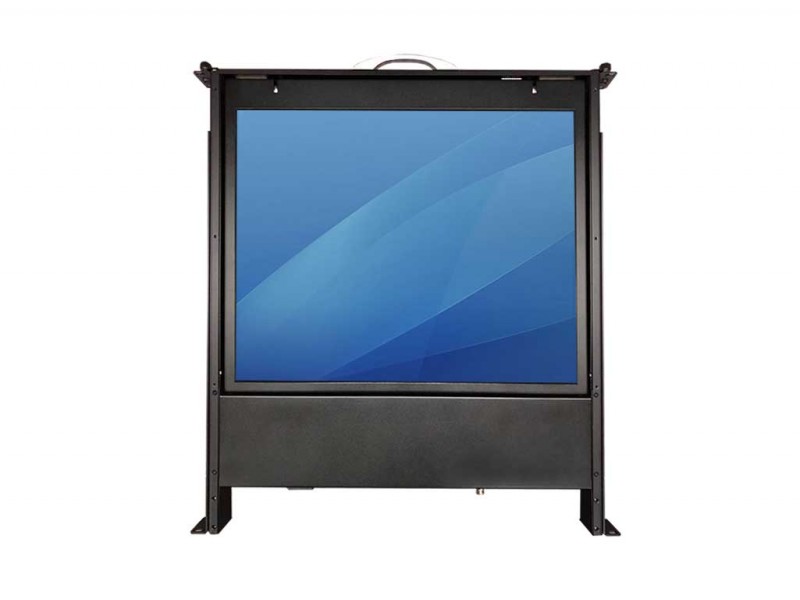

19” LCD (LED Backlit), 1U Rack Mount Drawer
Product Code: LRK-19R-1U
Availability: In Stock
Document file size Download Link
LRK-19R-1U 688.74KB Download
Panel Specification
Size/ Type 19” LCD (LED backlight)
Resolution 1280 x 1024@ 60Hz
Brightness 250 nits (cd/m2)
Contract Ratio 1000 : 1 (typ.)
Max. Colors 16.7M (6 bits + FRC)
Viewing Angle -85 ~ 85 (H); -80 ~ 80 (V)
Active Area 376.32(H) x 301.06 (V)
Pixel Pitch (mm) 0.294(H)x 0.294(V)
System
Mounting Type For 19” Rack mount with 530 ~ 600mm in depth
Housing Material Heavy duty steel
Lock 2 x Screw knob for Screen Lock
Input / Output
Serial Ports 1 x RS232 remote control (optional)
VGA 1 x VGA D-Sub 15-pin
DVI 1 x DVI-D Input
HDMI N/A
Video Component AV (optional)
HD-SDI (3G-SDI) 1 x HD-SDI Input (optional)
PS/2 N/A
USB 1 x USB for touch screen (optional)
Power Input 1 x AC input (100~240V Universal)
Keypad N/A
Kayboard N/A
Power Specification
Power Consumption 20 Watts (Typically)
Environment Specification
Operating Temperature 0 deg. C to 50 deg. C
Storage Temperature -20 deg. C to 70 deg. C
OSD
OSD Input 5-key OSD buttons
OSD Function Contrast, Color, Position, Auto-adjustment, Factory Settings
Order Options
High brightness 1000 nits (optional)
Speaker 2W Speaker x2 (optional)
Weight
Net Weight 12KG
