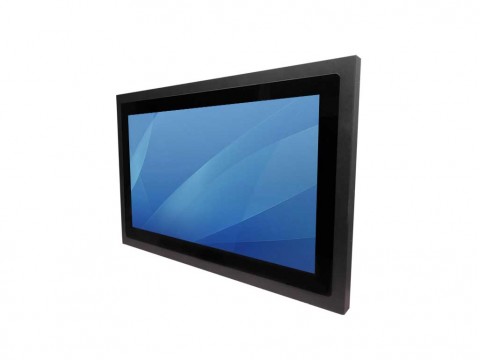

LCH-22W-CP 21.5” LCD Rugged Monitor.. Product #: LCH-22W-CP In Stock

LCH-22W-CP

21.5” LCD Rugged Monitor
Product Code: LCH-22W-CP
Availability: In Stock
Document file size Download Link
LCH-22W-CP 564.67KB Download
Panel Specification
Size/ Type 21.5” LCD (LED backlight)
Resolution 1920 x 1080 @60Hz
Brightness 250 nits (cd/m2) 1,200 nits high brightness (optional)
Contract Ratio 1000 : 1 (typ.)
Max. Colors 16.7M (8 bits + FRC)
Viewing Angle -85~85 (H) ; -80~80 (V)
Touch Screen 5-wire resistive touch or Projective-capacitive touch Either one
Active Area 476.64(H) x 268.11 (V)
Pixel Pitch (mm) 0.248(H)x 0.248(V)
Touch P-cap multi-touch (USB)
Anti reflection Anti-UV film (optional)
Input / Output
VGA 1 x VGA D-sub 15pin
DVI 1 x DVI-D
HDMI 1 x HDMI Input (optional)
USB 1 x USB for touch
Power Input 1 x DC input (terminal block)
DP 1 x DP (optional)
Power Specification
Power Adapter N/A
Power Consumption 50 W typical, normal operation
Power Input 9-36V DC power input
Power Cord N/A
Environment Specification
Operating Temperature 0 deg. C to 55 deg. C
Operating Humidity 5~95% non-condensing
Storage Temperature -20 deg. C to 70 deg. C
Vibration 1G rms for XYZ / 5-500Hz
Shock 10G for 20msec. /300m/s2
OSD
OSD Input 5-key OSD buttons
OSD Function Contrast, Color, Position, Auto-adjustment, Factory Settings
