LOF-19W 19” (16:10) LCD Open Frame Touch Monitor.. Product #: LOF-19W Pre-Order

LOF-19W

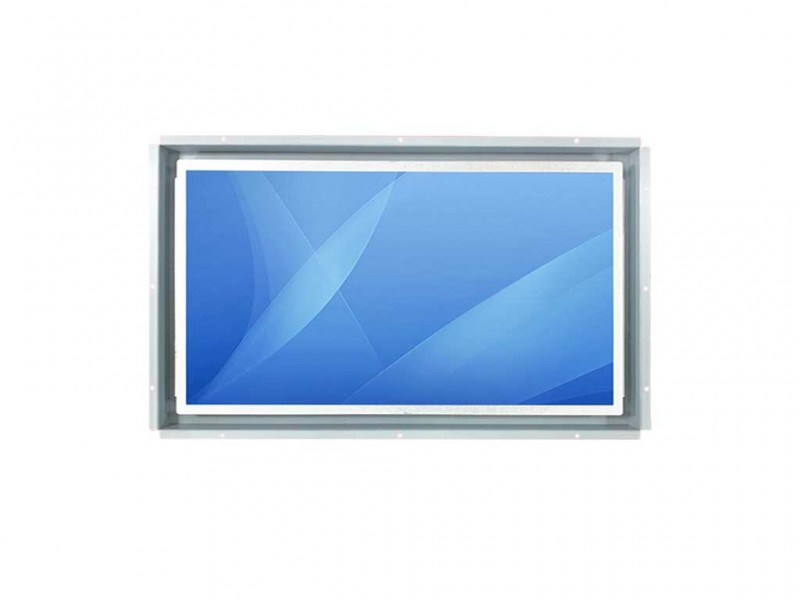

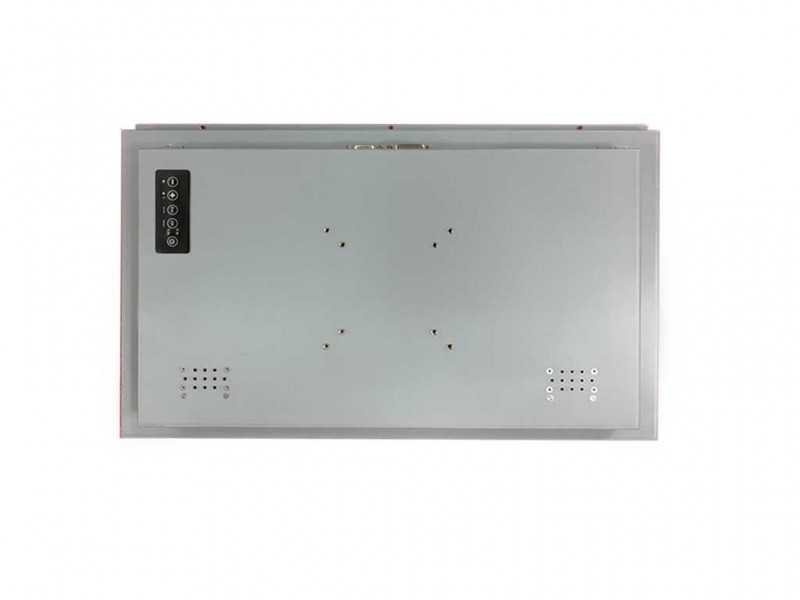

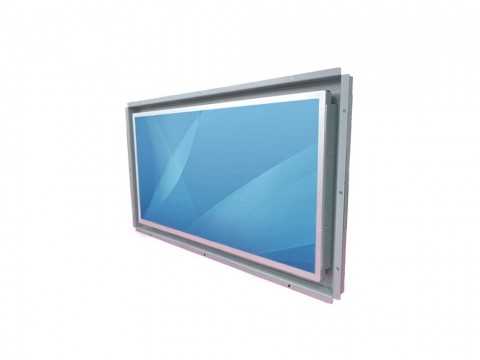

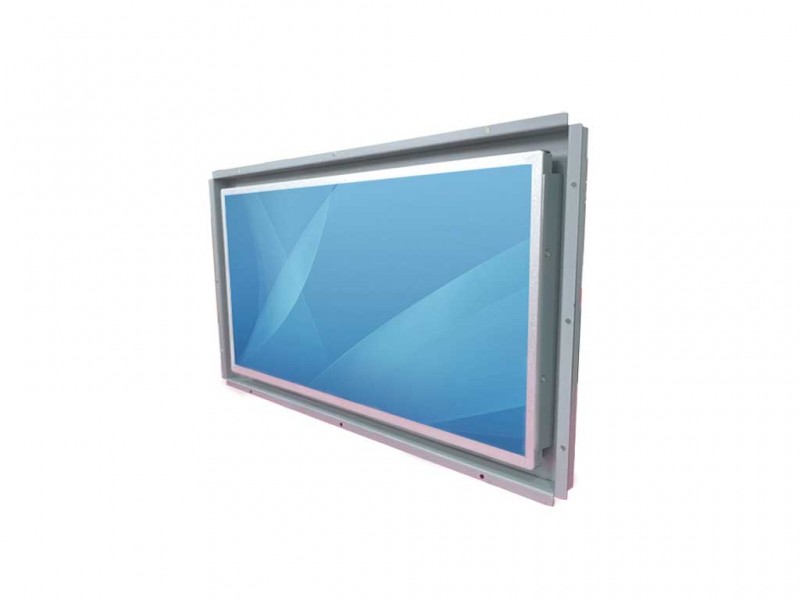

19” (16:10) LCD Open Frame Touch Monitor
Product Code: LOF-19W
Availability: Pre-Order
Document file size Download Link
LOF-19W 606.9KB Download
Panel Specification
Size/ Type 19” (16:9) LCD (LED backlight)
Resolution 1440 x 900 @ 60Hz, 75Hz
Brightness 250 nits (cd/m2)
Contract Ratio 1000 : 1 (typ.)
Max. Colors 16.7M (6 bits + FRC)
Viewing Angle -85~85 (H) ; -80~ 80 (V)
Touch Screen 5-wire resistive touch screen(optional)
Active Area 408.24 (H) x 255.15 (V)
Pixel Pitch (mm) 0.2835 (H) x 0.2835 (V)
Input / Output
VGA 1 x VGA D-Sub 15 pin
DVI 1 x DVI-D
HDMI N/A
Video S-Video, Composite (optional)
USB 1 x USB for touch
Power Input 1 x 9~36V DC input (Terminal block)
Power Specification
Power Adapter N/A
Power Consumption 23 W typical, normal operation
Management VESA DPMS compliant
Power Cord N/A
Environment Specification
Operating Temperature 0 deg. C to 55 deg. C
Storage Temperature -20 deg. C to 70 deg. C
OSD
OSD Input 5-key OSD buttons
OSD Function Contrast, Color, Position, Auto-adjustment, Factory Settings
Order Options
Touch 5-wire, IR, Capacitive touch for options
AR Glass AR glass protection (optional)
Speaker 2W Speaker x2 (optional)
