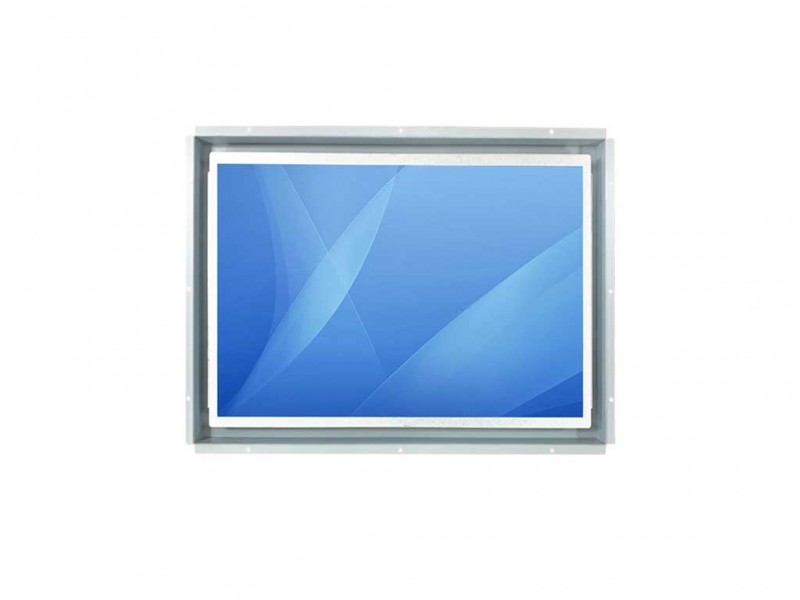

LOF-19R 19” LCD Touch Monitor.. Product #: LOF-19R Pre-Order

LOF-19R

19” LCD Touch Monitor
Product Code: LOF-19R
Availability: Pre-Order
Document file size Download Link
LOF-19R 755.67KB Download
Panel Specification
Size/ Type 19” LCD (LED backlight)
Resolution 1280 x 1024@ 60Hz
Brightness 350 nits (cd/m2)
Contract Ratio 1000 : 1 (typ.)
Max. Colors 16.7M (6 bits + FRC)
Viewing Angle -85~85 (H) ; -80~ 80 (V)
Active Area 376.32(H) x 301.06 (V)
Pixel Pitch (mm) 0.294(H)x 0.294(V)
Input / Output
VGA 1 x VGA D-Sub 15 pin
DVI 1 x DVI-D
HDMI 1 x HDMI (optional)
Video S-Video, Composite (optional)
Power Input 1 x 12V DC input
COM 1 x RS232 for touch (optional)
Power Specification
Power Adapter AC to 12V DC output adapter
Power Consumption 40 W typical, normal operation
Management VESA DPMS compliant
Power Cord Provided by region
Environment Specification
Operating Temperature 0 deg. C to 55 deg. C
Storage Temperature -20 deg. C to 70 deg. C
OSD
OSD Input 5-key OSD buttons
OSD Function Contrast, Color, Position, Auto-adjustment, Factory Settings
Order Options
Touch 5-wire, IR, Capacitive touch for options
AR Glass AR glass protection (optional)
High brightness 1000 nits (optional)
Speaker 2W Speaker x2 (optional)
