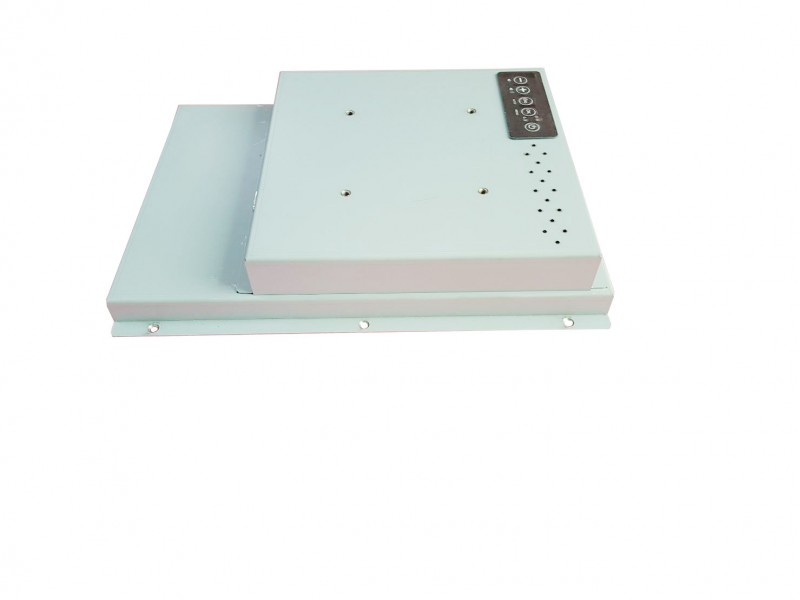

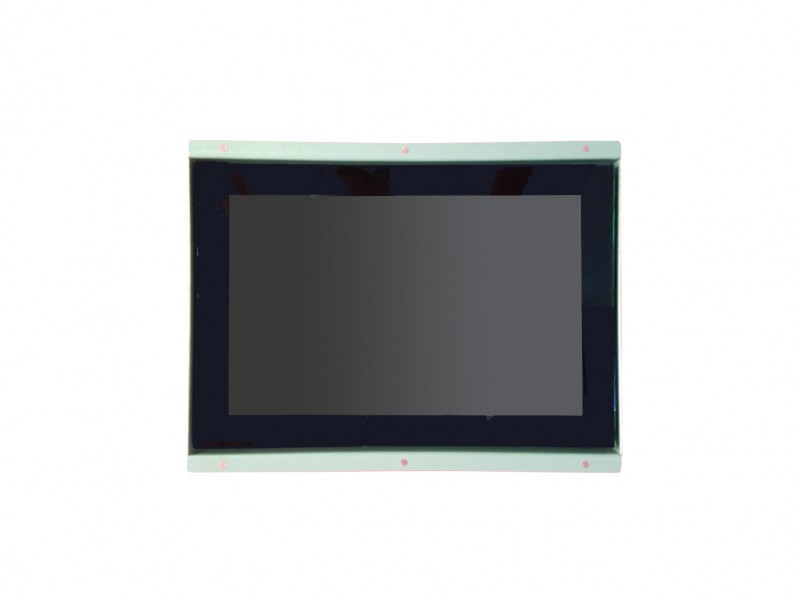

LOF-10W-CP 10.1" Open Frame Monitor.. Product #: LOF-10W-CP Pre-Order

LOF-10W-CP

10.1" Open Frame Monitor
Product Code: LOF-10W-CP
Availability: Pre-Order
  • HD-SDI Input / Output
  • 10.1" 1024x600
  • P-cap multi-touch
  • VGA / DVI
  • 12V DC Power Input
Call for Price: .
  • HD-SDI Input / Output
  • 10.1" 1024x600
  • P-cap multi-touch
  • VGA / DVI
  • 12V DC Power Input
Document file size Download Link
LOF-10W 453.33KB Download
Panel Specification
Size/ Type 10.1 Inch
Resolution 1024x600
Brightness 200 nits
Contract Ratio 500 : 1
Max. Colors 262K Colors
Viewing Angle -45 ~ 45 (H); -15 ~ 35 (V)
Touch Screen P-cap 10-point multi touch
Active Area 222.72 (H) x 125.28 (V)
System
Mounting Type VESA Mount, Rear Mount
Input / Output
USB Ports 1 x USB for touch screen
VGA 1 x VGA
DVI 1 x DVI
Power Specification
Power Adapter 1 x Ext AC/DC power adapter
Power Input 12V DC (Terminal block)
Environment Specification
Operating Temperature 0 ~ 50 deg.C
Operating Humidity 10~90% (non-condensing)
Storage Temperature -30~70 deg.C
Dimensions and Weight
Dimensions 263 x 201 x 43mm (WxLxD)
Weight 2.0 KG

P-cap 10-point multi touch (USB)

10.1" 1024x600, 200nits Display

VGA / DVI Input

12V DC Input, w/ext. AC/DC power adapter

Open Frame Housing

1. 10.1", 1280x800 resolution, 400nits in brightness

2. Other Input: Video / HDMI / DP

3. 5-wire resistive touch

4. 9~36V DC Input
