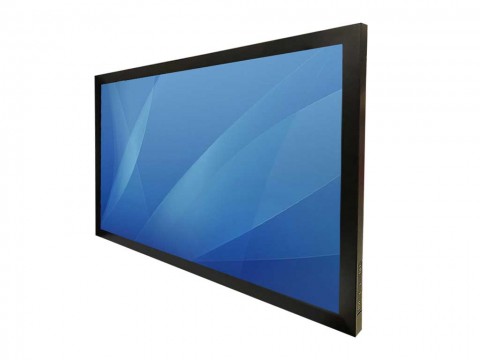

PCH-42WP-CP 42” LCD (LED backlight) Panel PC w/Intel Apollolake platform.. Product #: PCH-42WP-CP In Stock

PCH-42WP-CP

42” LCD (LED backlight) Panel PC w/Intel Apollolake platform
Product Code: PCH-42WP-CP
Availability: In Stock
Document file size Download Link
FIP-24W-CP 582.61KB Download
Panel Specification
Size/ Type 42” LCD (LED backlight)
Resolution 1920 x 1080 @ 60Hz
Brightness 400 nits (cd/m2)
Contract Ratio 2500 : 1 (typ.)
Max. Colors 16.7M colors
Viewing Angle -85 ~ 85 (H); -80 ~ 80 (V)
Active Area 930.25 (H) x 523.01 (V)
Pixel Pitch (mm) 0.4845 (H)x 0.4845 (V)
System
System Memory DDR3L 1867MHz So-DIMM 4GB (max. 8GB)
Storage mSATA SSD 64 GB
Audio Codec Realtek ALC886 HD Audio Codec
BIOS AMI 16MB Flash
Housing Material Heavy duty aluminum bezel/heavy duty metal
Ethernet Dual Intel® I210-AT
CPU Intel® Celeron® N3350 up to 2.3 GHz
Graphic Integrated Intel® Gen9 HD Graphics
GPIO 8-bit GPIO (optional)
Com ports Total 4 x COM ports (2x COM can be RS232/422/485)
Input / Output
Serial Ports 1 x RS232
USB Ports 2 x USB 3.0, 2 x USB 2.0
Ethernet 2 x RJ45 GbE LAN
VGA N/A
HDMI 1 x HDMI output
Power 100~240V AC Input
Buttons 1 x AC In On/Off switch (I/O) 1 x Power On/Off, 1 x Reset (rear)
Power Specification
Power Consumption 180 W typical, normal operation
Power Input 110~ 240V AC Input
Management VESA DPMS compliant
Power Cord 1 x 1.5m power cord
Environment Specification
Operating Temperature 0 deg. C to 55 deg. C
Storage Temperature -20 deg. C to 70 deg. C
Vibration 5Hz~500Hz / 1Grms/3 Axis
Water/Dust proof Front IP65
OSD
LED Indicators 1 x Power LED, 1 x Storage LED indicator
Control Button 1 x Power On/Off, 1 x Reset
