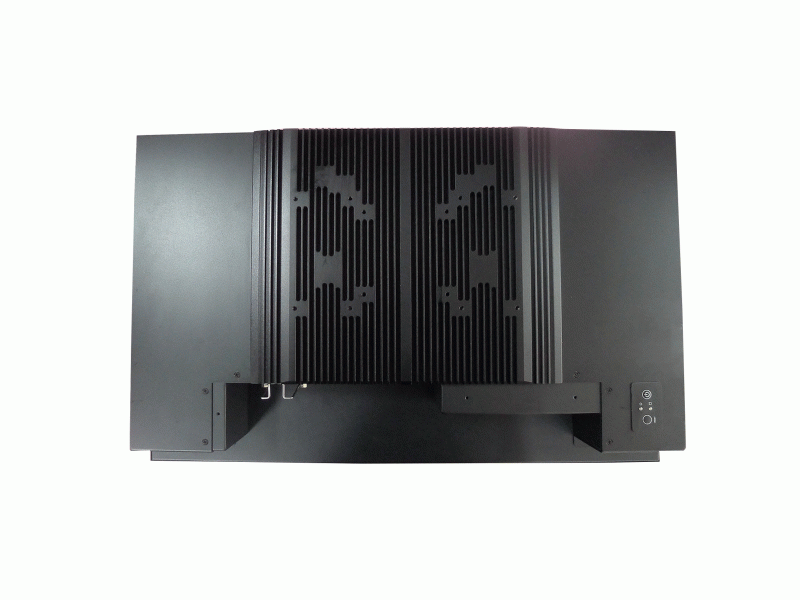

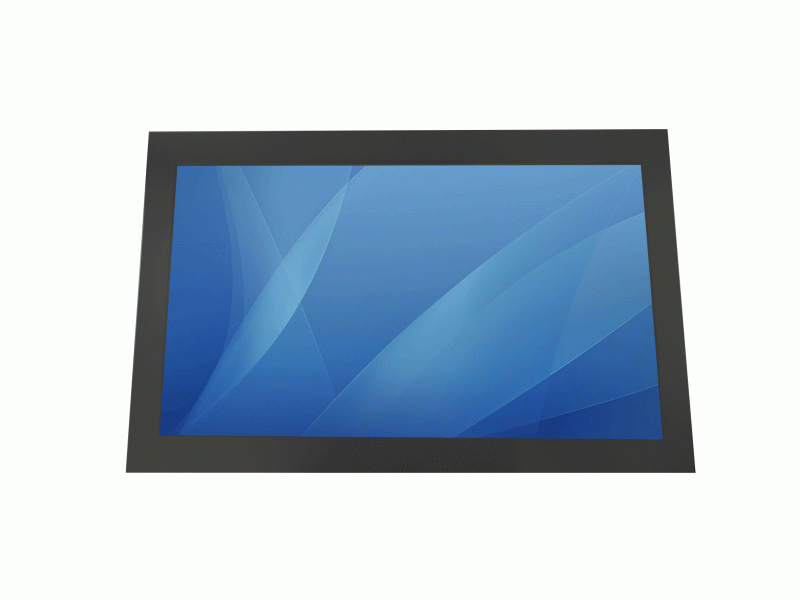

PCH-22WF-POE 21.5” (16:9) Intel 8/9th Generation Coffeelake platform.. Product #: PCH-22WF-POE Pre-Order

PCH-22WF-POE

21.5” (16:9) Intel 8/9th Generation Coffeelake platform
Product Code: PCH-22WF-POE
Availability: Pre-Order
Call for Price: .
Document file size Download Link
PCH-22WF-POE 377.8KB Download
Panel Specification
Size/ Type 21.5” (16:9)
Resolution 1920x1080
Brightness 250 nits
Contract Ratio 1000:1
Viewing Angle -85~85 (H); -80~80 (V)
Touch Screen 5-wire resistive touch or P-cap multi touch (optional)
System
System Chipsets Intel® Coffee Lake-S H310 Chipsets
System Memory Dual DDR4 So-DIMM 2133MHz (max. 32GB)
Storage SATAIII HDD 500GB or M.2 (M-key2242)
BIOS AMI 128M Flash BIOS
OS Support Windows 10(optional)
Mounting Type 100x100, 200x100 VESA Mount
Ethernet Intel® Ethernet Controller I211-AT + Intel®Gigabit Ethernet PHY I219-V
Cooling system Internal cycle fan, no system fan exposed
CPU Intel® 8th Generation Coffeelake LGA1151 CPU
Graphic Integrated Intel® HD Graphics
Power Input +12V DC input with external power adapter
I/O chipset Fintek F81865
Input / Output
Serial Ports N/A
USB Ports 4 x USB3.0
Ethernet 1 x RJ45 GbE LAN 2 x RJ45 POE PSE LAN
Video 1 x HDMI, 1 x VGA
Power Input 1 x 12V DC (Terminal block)
Power Specification
Power Consumption 90W (typ.)
Power Input 1 x 12V DC, w/an external AC to DC power adapter
Environment Specification
Operating Temperature -5 deg. C to 50 deg. C
Operating Humidity 30~90% (Non-condensing)
