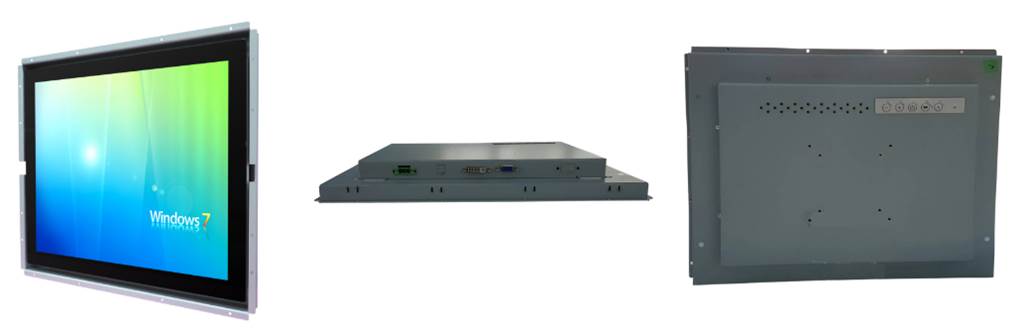

Regular Ratio of TFT LCD (4:3 or 5:4)

Model Name LOF-10R LOF-12R LOF-15R LOF-19R
LCD Parameter
Size / LCD Type 10.4" (4:3) TFT LCD 12.1" (4:3) TFT LCD 15"(4:3) TFT LCD  19.0" (5:4) TFT LCD
Touch Screen 10-point multi-touch 10-point multi touch 10-point multi-touch 10-point multi-touch
Brightness 400 (cd/m2) 500 (cd/m2) 400 (cd/m2) 250 (cd/m2)
Resolution 1024 x 768 1024 x 768 1024 x 768 1280 x 1024
Contract Ratio 1,200 : 1 700 : 1 700 : 1 700 : 1
Max. Colors 16.2 M ( 8 bit/color) 262K / 16.2 M Colors 16.2 M Colors 16.2M Colors
Viewing Angle -88 ~ 88 (H); -88 ~ 88 (V) -80 ~ 80 (H); -70 ~ 70(V) -80 ~ 80 (H); -70 ~ 70 (V) -80 ~ 80 (H); -70 ~ 70 (V)
Active Area (AA) 210.40 (H) x 157.80 (V) 245.76 (H) x 148.32 (V) 304.10 (H) x 228.10 (V) 304.10 (H) x 228.10 (V)
Pixel Pitch (mm) 0.0685 x 0.0685 0.2400 x 0.2400 0.2970 x 0.2970 0.2970 x 0.2970
Signal Input
VGA x1 x1 x1 x1
DVI x1 x1 x1 x1
HDMI x1 (optional) x1 (optional) x1 (optional) x1 (optional)
Video (Composite) x1 (optional) x1 (optional) x1 (optional) x1 (optional)
DP x1 (optional) x1 (optional) x1 (optional) x1 (optional)
USB x1 x1 x1 x1
System Specification
Power Input 12V DC Input (terminal block) 12V DC Input (terminal block) 12V DC Input (terminal block) 12V DC Input (terminal block)
Power Adapter 1 x AC/DC Power adapter 1 x AC/DC Power adapter 1 x AC/DC Power adapter 1 x AC/DC Power adapter
Control Button 5- key button 5- key button 5- key button 5- key button
OSD Menu LCD & OSD parameter adjustment LCD & OSD parameter adjustment LCD & OSD parameter adjustment LCD & OSD parameter adjustment
Environment
Operating Temperature -5 ~ 55 C -5 ~ 50 C -5~ 55 C -5~ 55 C
Storage Temperature -20~70C -20~70C -20~70C -20~70C
Humidity 10~90% non-condensing 10~90% non-condensing 10~90% non-condensing 10~90% non-condensing
EMC CE, FCC Class B CE , FCC Class B CE, FCC Class B CE, FCC Class B
Dimension (WxHxD) (mm) 260.0 x 215.0 x 38.0 320.0 x 270.0 x 53.1 380.6 x 304.6 x 53.1 476.0 x 401.0 x 80.0
Weight 2.8 KG 3.0 KG 6.0 KG 8KG
Mounting Rear mount / VESA mount Rear mount / VESA mount Rear mount / VESA mount Rear mount / VESA mount
Order Options
Other Resolution 800 x 600 N/A 1600 x 1050 N/A
Sunlight Readable 1,000 nits high brightness 1,000 nits high brightness 1,000 nits high brightness 1,000 nits high brightness
Anti-Reflection AR /AG front coating  AR /AG front coating AR /AG front coating AR /AG front coating
Power Option 9~36V DC Input or 90~240V AC Input 9~36V DC Input or 90~240V AC Input 9~36V DC Input or 90~240V AC Input

9~36V DC Input or 90~240V AC Input
